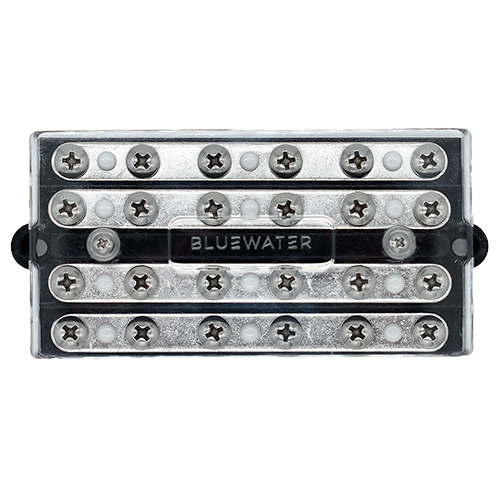

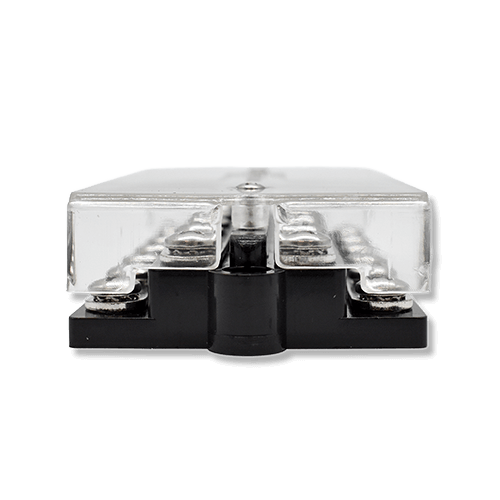

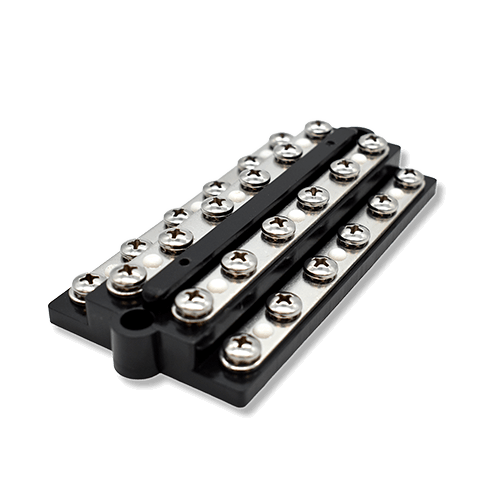

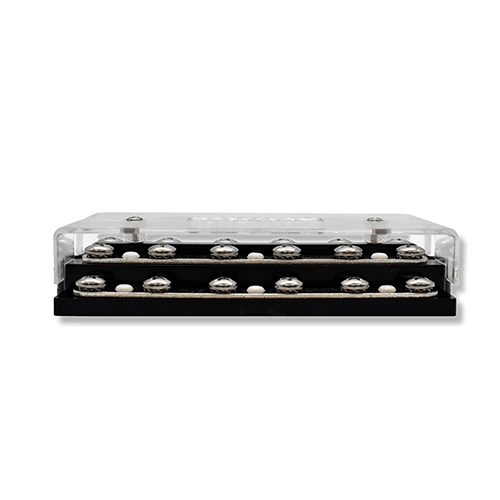

RGB Busbar

This Busbar is for bussing all of your RGB led lights, each set of 6 screws is set on a common tin-copper plate. Allowing you to easily set up all of your light configurations. This busbar is rated for 100 amps. The busbar and cover are one part.

  • Busbar Part #: 312404-B-022

Specifications

Maximum Voltage 300V/48VDC Terminal Type 1/4″ Studs, #8-32 Screws
Continuous Rating 100 Amps Dimensions View Dimensional Drawings
Terminal Studs 2 Material Black Polycarbonate, Clear PolycarbonateTin-Plated Copper
Spec Sheet

Installation

Mount with (2) 1/4″ screws.
