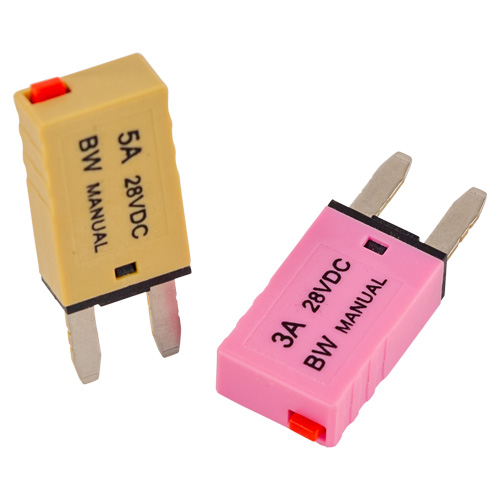

Mini ATC Circuit Breaker – Manual Reset

ATC_circuit_breaker_manual-reset1
ATC_circuit_breaker_manual-reset2
ATC_circuit_breaker_manual-reset1
ATC_circuit_breaker_manual-reset2
previous arrow
next arrow

Circuit Breakers

MSRP $XX.XX

These mini circuit breakers fit into any standard ATO or ATC fuse socket and type 3 manual reset thermal non-cycling circuit breakers will remain tripped until the operator resets them by pushing a button located on the breaker. Typically used in auxiliary and accessory circuits in truck, bus, RVs and marine systems. The cover is color-coded to amperage ratings, and the amperage rating and voltage rating are printed on the circuit breaker for easy identification.

  • Over-Load Percentage 100% : No Trip within 60min
  • Over-Load Percentage 150% : Trip within 20min
  • Over-Load Percentage 200%: Trip within 60s

Specifications

Max Voltage 12VDC Material Thermoplastic/
Tin-Plated Copper Alloy
Max Current 5 – 30A Features Color-coded per amperage ratings
Max Interrupting Capacity 2,000A
Max Voltage 12VDC
Max Current 5 – 30A
Max Interrupting Capacity 2,000A
Material Thermoplastic/
Tin-Plated Copper Alloy
Features Color-coded per amperage ratings

Installation

N/A
