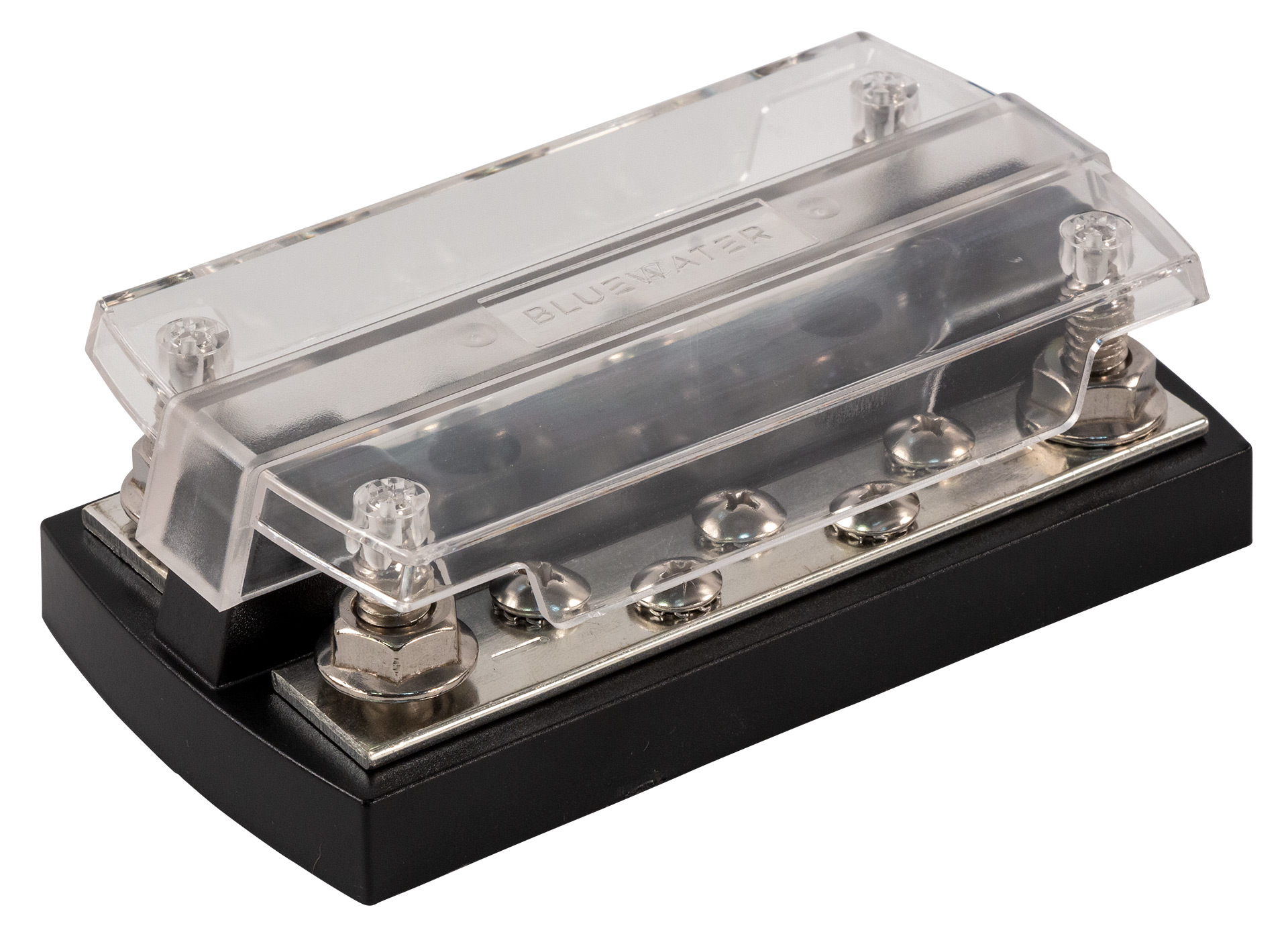

Dual Studs Busbar – Terminal Block Style, 10 Gang, 150 AMP

IMG_9930
IMG_9930
previous arrow
next arrow

Electrical Accessories

MSRP $XX.XX

► Dual Studs 10 Gangs Terminal Blocks.
► Current Rated up to 150 Amp.
► Special 5/16″ Stud Size Stainless Steel
► #10-24 Screw, 5 per Bus
► Mounting Holes 0.20″
Distance between mounting holes: 1.88″
► Part#: 312723-B-022 (with Cover)

Specifications

Maximum Voltage 300V/48VDC Terminal Type 5/16″ Studs, #10-24 Screws
Continuous Rating 130 Amps AC – 150 Amps DC Dimensions View Dimensional Drawings
Terminal Studs 2 per bus Material Black Polycarbonate, Clear PolycarbonateTin-Plated Copper
Spec Sheet

Installation

Mount with (2) 1/4″ screws.
