Dual Stud busbar Copper Link
Part No: 312311-A-024 (3/8″)
Part No: 312311-A-025 (5/16″)

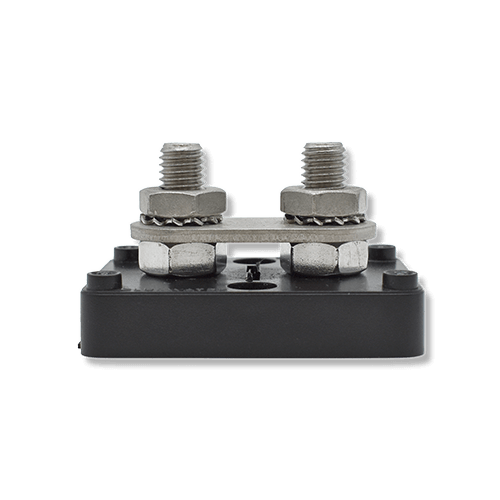

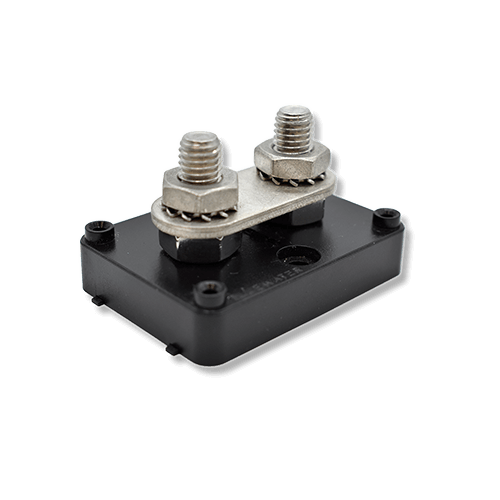

This Dual Stud Busbar features an integrated copper link that connects both studs for continuous conductivity and efficient current distribution. Engineered for high performance, it minimizes resistance while maintaining durability in demanding electrical systems. Ideal for marine and industrial applications where clean, reliable power transfer is essential.
Specifications/Additional Info
Specifications
- Max Voltage: 48V DC
- Max Amp: 200A
- Stud Size: 3/8″-16 or 5/16″
- Mounting Holes: 0.25
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 1.425″
Installation
Mount with (2) #10, 1/4″ Screws
Spec Sheet
Busbars Brochure
