Dual Stud Busbar 5/16″

312311-B-020

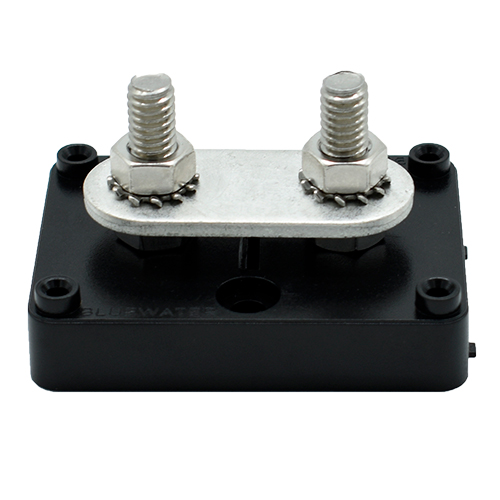

This busbar has two 5/16″ studs with a piece of plastic allowing you to isolate the two terminals. The plastic flange is removable allowing you to bus the two studs with a solid copper link. This busbar is a great application for linking an engine to the boat.

Specifications

Maximum Voltage 48VDC Terminal Type 5/16″ Stud
Max Amperage 200A Dimensions View Dimensional Drawings
Terminal Studs 2 Material Reinforced Polycarbonate/
Tin-Plated Copper
Maximum Voltage 48VDC
Max Amperage 200A
Terminal Type 3/8″ – 16 Stud
Terminal Studs 2
Dimensions View Dimensional Drawings
Material Reinforced Polycarbonate/
Tin-Plated Copper

Installation

Mount with 2 1/4″ Screws
