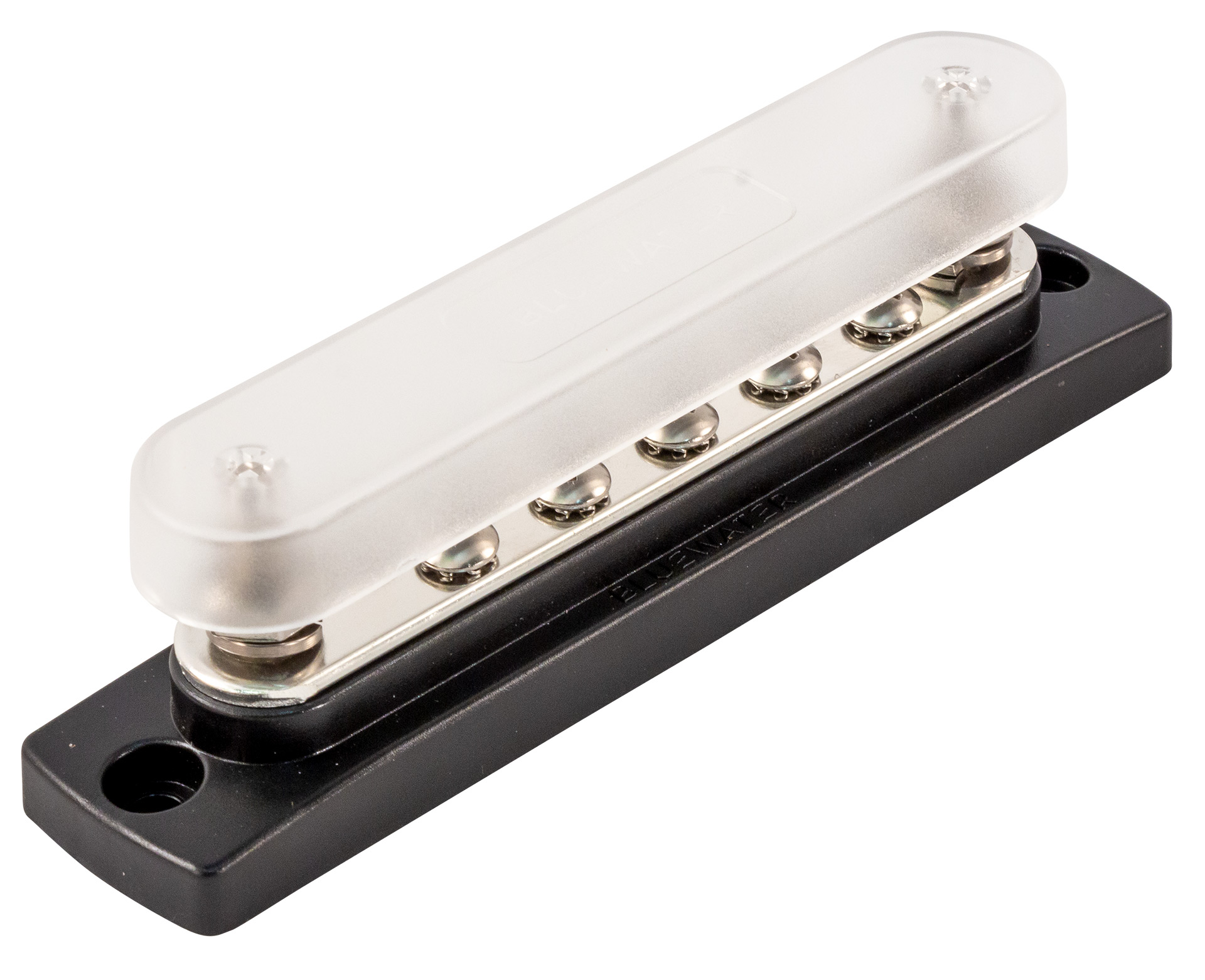

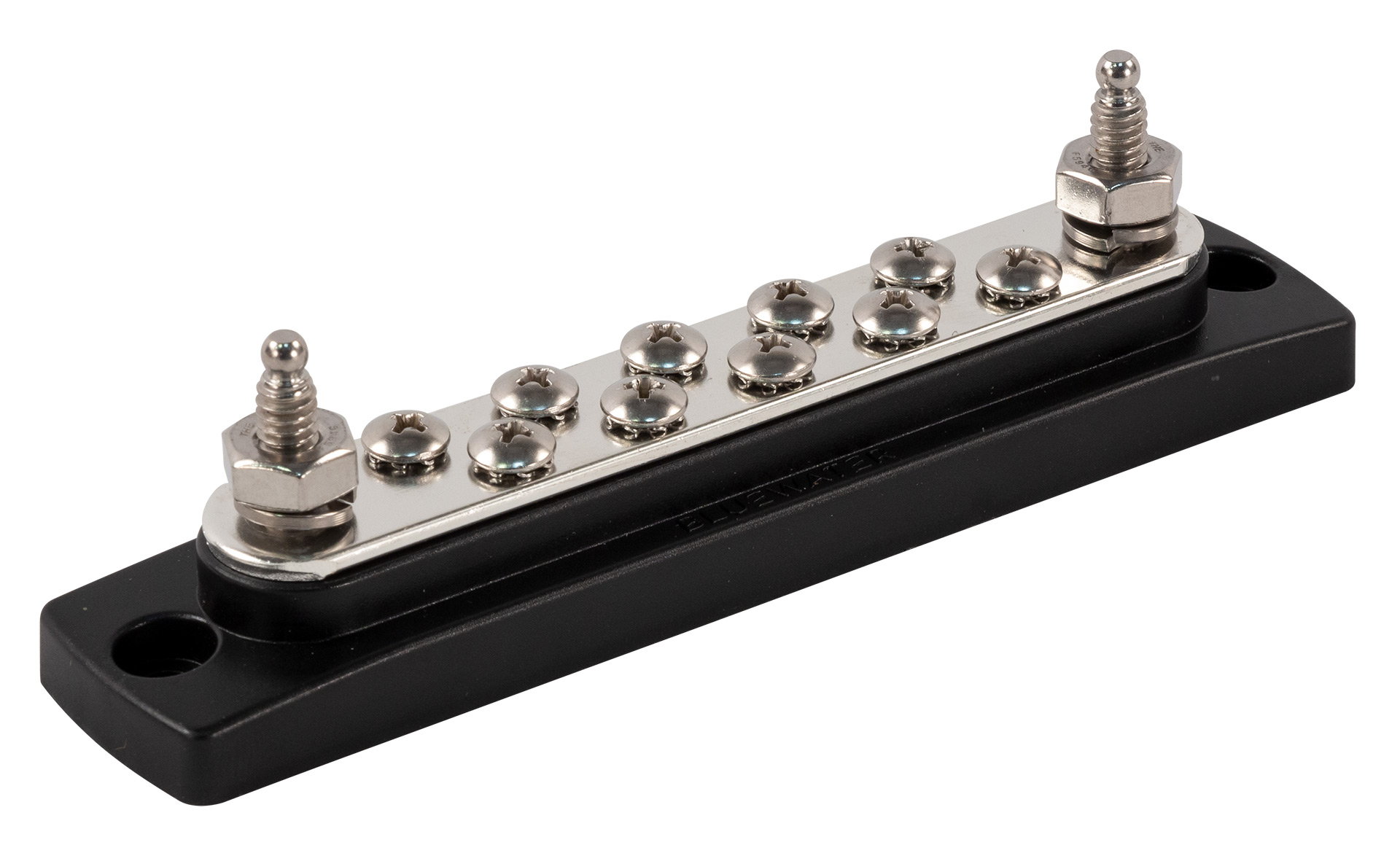

Common Busbar – Terminal Block Style, 10 Gang, 150 AMP

IMG_9934
IMG_9929
IMG_9934
IMG_9929
previous arrow
next arrow

Electrical Accessories

MSRP $XX.XX

► Common 10 Gang Terminal Blocks.
► Current Rated up to 150 Amp.
► 1 /4″ Stud Size Stainless Steel
► Mounting Holes 0.21 “, take 1 /4″ Screws Distance between mounting holes: 5.25”
► Bus bar Part#: 312301-B-020
► Cover Part# : 312 301-B-021

Specifications

Maximum Voltage 300V/48VDC Terminal Type 1/4″ Studs, #8-32 Screws
Continuous Rating 130 Amps AC – 150 Amps DC Dimensions View Dimensional Drawings
Terminal Studs 2 Material Black Polycarbonate, Clear PolycarbonateTin-Plated Copper
Spec Sheet

Installation

Mount with (2) 1/4″ screws.
