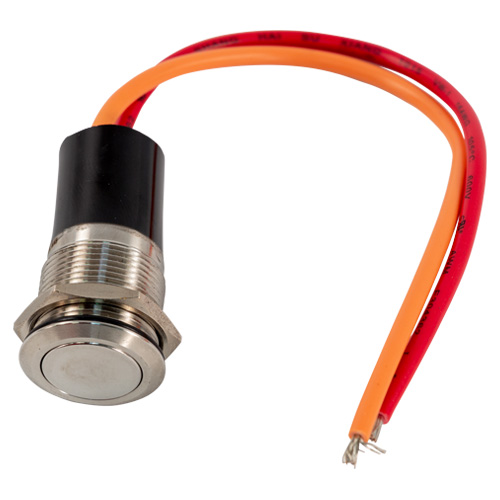

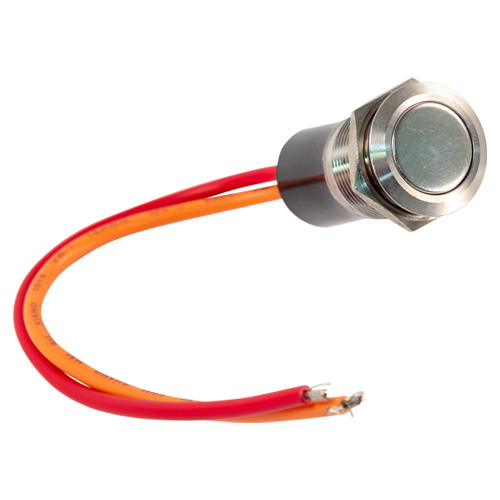

19mm non-LED Mechanical Push Button Switch

stainless_steel_epoxy_19mm1
stainless_steel_epoxy_19mm2
stainless_steel_epoxy_19mm1
stainless_steel_epoxy_19mm2
previous arrow
next arrow

Switches

MSRP $XX.XX

These stainless steel switches with interchangeable push button can transform any dash by adding a touch of modern flair and is available in both a Standard On/Off contact or a Momentary On/Off contact version.
The front is comprised of a flat metal actuator. The body design combined with the included gasket gives this button switch a waterproof rating of IP67.
Lastly, these mechanical switches are available with either push-on or epoxied harnesses.

Specifications

Switch Rating10A/12VDCDimensionsView Dimensional Drawings
Switch Contacts1 NO, 1 NC | 2 NO, 2 NCMaterialStainless Steel
Mechanical Life500,000 cyclesLED colorN/A
Electrical Life50,000 cycles
Switch Rating 10A/12VDC
Switch Contacts 1 NO, 1 NC | 2 NO, 2 NC
Mechanical Life 500,000 cycles
Electrical Life 50,000 cycles
Dimensions View Dimensional Drawings
Material Stainless Steel
LED color N/A

Installation

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience).
