19mm Mechanical Switch w/ LEDS

Modernize your dash with a rugged, low-profile switch that delivers both function and visual clarity. This 19mm stainless steel mechanical button is available in two contact styles—standard on/off or momentary—giving you flexibility for a wide range of systems, from lighting to horn controls.

Engineered for harsh environments, each switch is sealed to an IP67 waterproof rating with a built-in gasket and a corrosion-resistant body. When your on the water, this compact switch is built to last.

Backlit by a vivid blue LED when inactive, the illumination shifts to red when activated—offering immediate, unmistakable feedback day or night.

Two LED face styles are available: choose between a brushed metal actuator with an illuminated ring, or a fully translucent illuminated face for maximum glow.

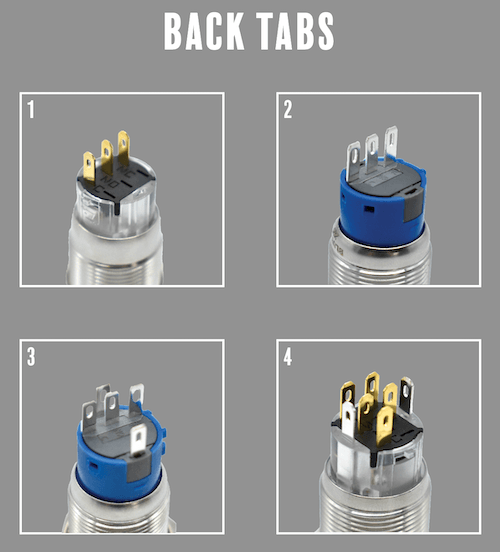

Designed for easy panel mounting in tight spaces, this switch comes prewired with either a push-on terminal or  fully sealed epoxied harness for fast installation. Wherever visibility, style, and reliability matter, this tactile LED switch brings clarity to every command.

Waterproof rating: IP67
Switch Rating: 10A/12VDC
Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
Mechanical Life: 500,000 Cycles
Electrical Life: 10,000 Cycles
Dimensions: View Dimensional Drawings
Material: Nickel Plated Brass/Stainless Steel
LED Color: Blue/Green/Red

Installation

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
