38 Series Circuit Breaker

thermal_circuit_breaker1
thermal_circuit_breaker2
thermal_circuit_breaker1
thermal_circuit_breaker2
previous arrow
next arrow

Circuit Breakers

MSRP $XX.XX

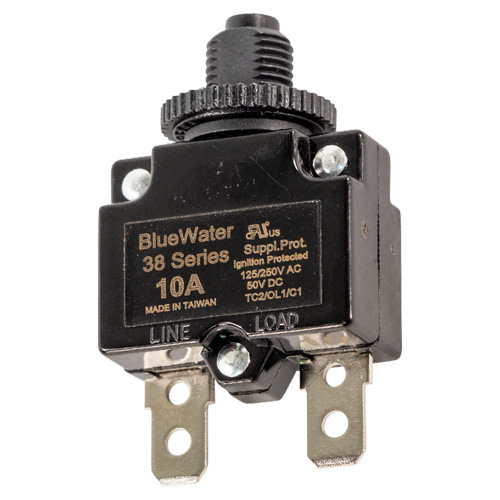

The 38-Series is a miniature push-to-reset thermal circuit breaker. It has an amperage range from 3A to 30A. It also offers a variety of mounting options, including panels or plates, ring nuts, or black and clear circuit breaker boots. There are two different terminal styles: .250 QC tabs and 90-degree screw. With a combination of different top styles you can choose from like white, black, white marked, or black marked. This miniature thermal breaker can be used with our Circuit Breaker box to create a 6 or 12 position distribution panel.

  • Over-Load Percentage 100% : Hold with No Trip
  • Over-Load Percentage 150% : No Trip within 60min
  • Over-Load Percentage 200% : Trip within 5 – 30s
  • Over-Load Percentage 300%: Trip within 1.5 – 5s

Specifications

Voltage Rating 125/250VAC; 32/50VDC
Current Rating 3 – 30A
Voltage Rating 125/250VAC; 32/50VDC
Current Rating 3 – 30A

Installation

N/A
