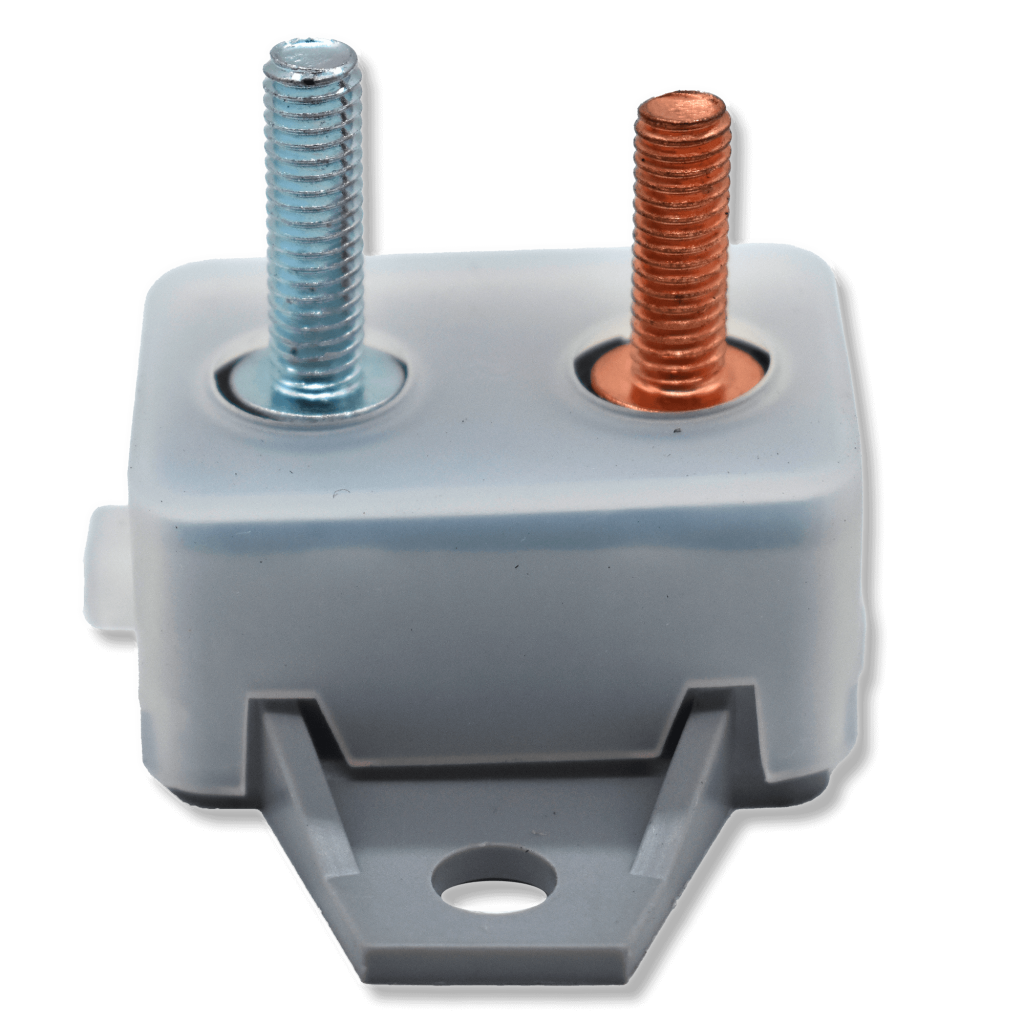

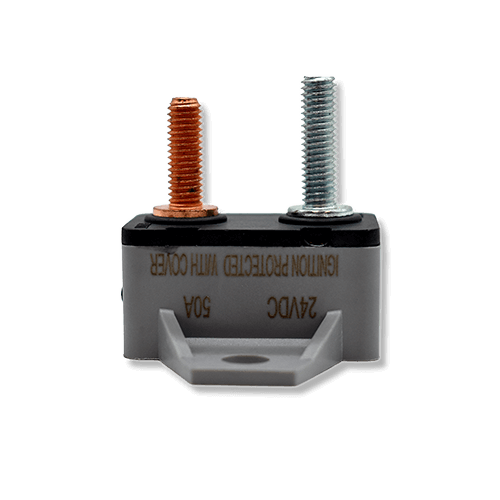

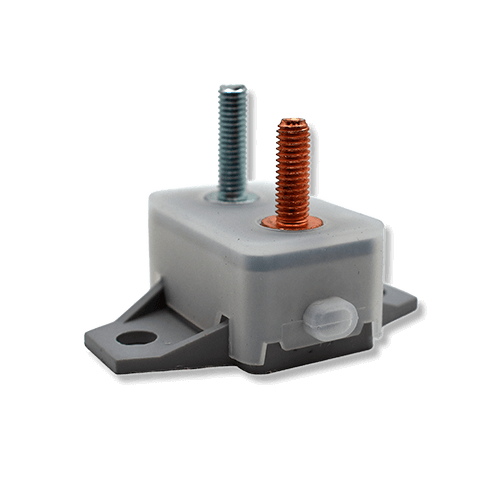

Short Stop circuit breakers are compact, stud-mounted thermal breakers designed for protection in 12V and 24V DC systems, with current ratings available from 3A to 50A. These breakers are enclosed in a durable silicone core and come in both auto-reset and manual-reset configurations, making them a versatile choice for automotive, marine, and equipment applications.

Built for reliability, the breaker is designed to hold at 100% overload, avoid tripping within 60 minutes at 150%, trip within 4 to 40 seconds at 200%, and react quickly—tripping within 1.2 to 12 seconds at 300%. This range ensures dependable circuit protection under various load conditions.

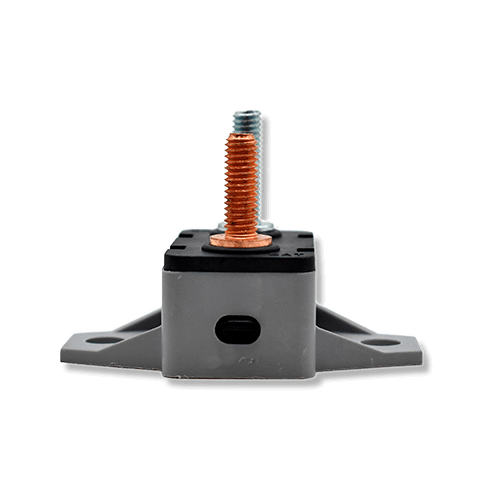

Installation is straightforward with #10 stainless steel studs, 0.20” mounting holes, and a 1.88” hole spacing. The breaker is designed to be fastened using a 5/32” pan head machine screw, allowing for secure and stable mounting in tight environments.

Compact, rugged, and easy to install, Short Stop breakers are an excellent choice for distributed power systems and in-line circuit protection.
