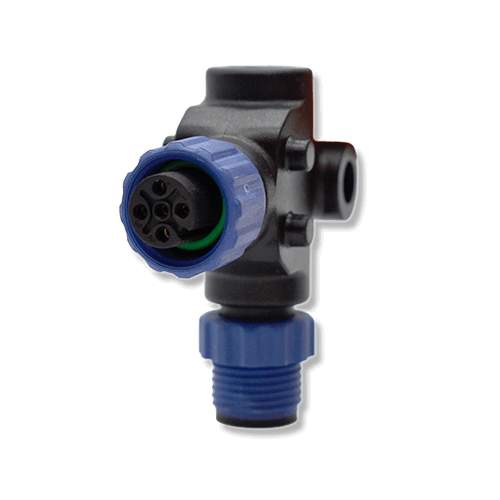

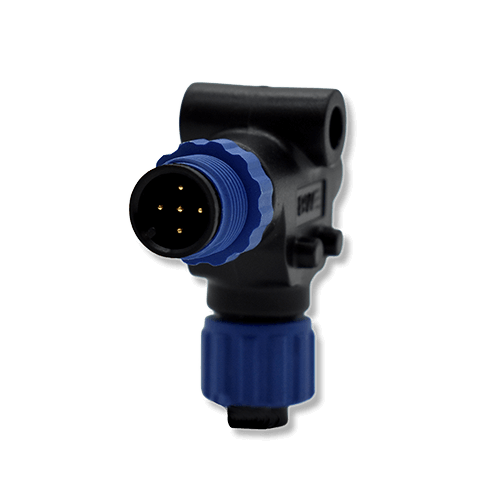

The NMEA 2000 right angle adapter is a space saving connector designed for tight marine electronics installations. The 90 degree orientation allows NMEA 2000 cables to route cleanly along panels and enclosures, reducing strain where straight connectors cannot fit.

Compatibility and Construction

Built to NMEA 2000 specifications, this adapter features a standard 5 pin Micro C connection for full network compatibility. The sealed, marine grade housing provides a secure and moisture resistant connection suitable for use in demanding onboard environments.

Installation Use Cases

This right angle adapter is commonly used behind helm consoles, dashboards, and enclosed compartments where clearance is limited. It supports both new installations and network expansions while maintaining proper cable routing and long term reliability.

Key Features

• 90 degree right angle design for low clearance installations
• Standard Micro C 5 pin NMEA 2000 connection
• Reduces cable strain and improves routing
• Sealed housing for marine environments
• Compatible with NMEA 2000 backbones and drop cables

Common Applications

• Tight helm and dashboard installations
• Enclosures and rigging compartments
• Backbone and drop cable routing
• NMEA 2000 network upgrades and expansions
