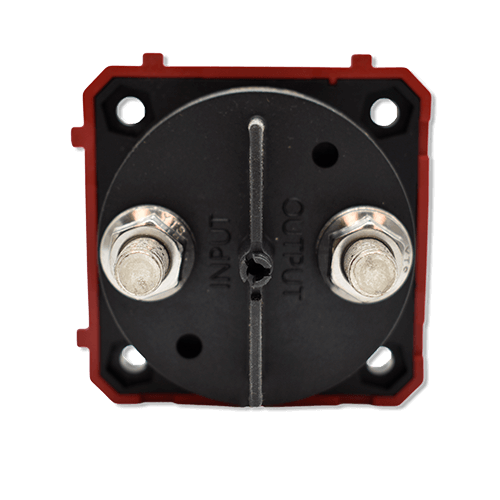

On/off Switch

Part No: 9800-006-10 (Panel Mount)

Part No: 9800-006-11 (Surface Mount)

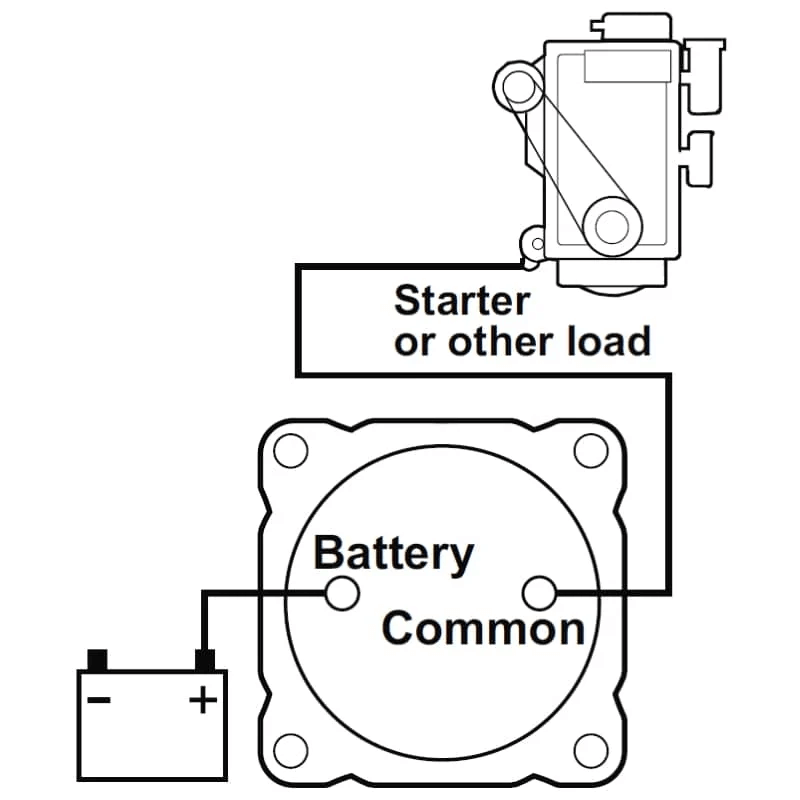

Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.

Ignition protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.

Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.

  • Continuous Rating: 300 Amps DC

  • Intermittent Rating: 500 Amps DC (5 min)

  • Cranking Rating: 900 Amps DC (30 sec)

  • Max Voltage: 40VDC

  • Cable Size: 4/0 AWG
