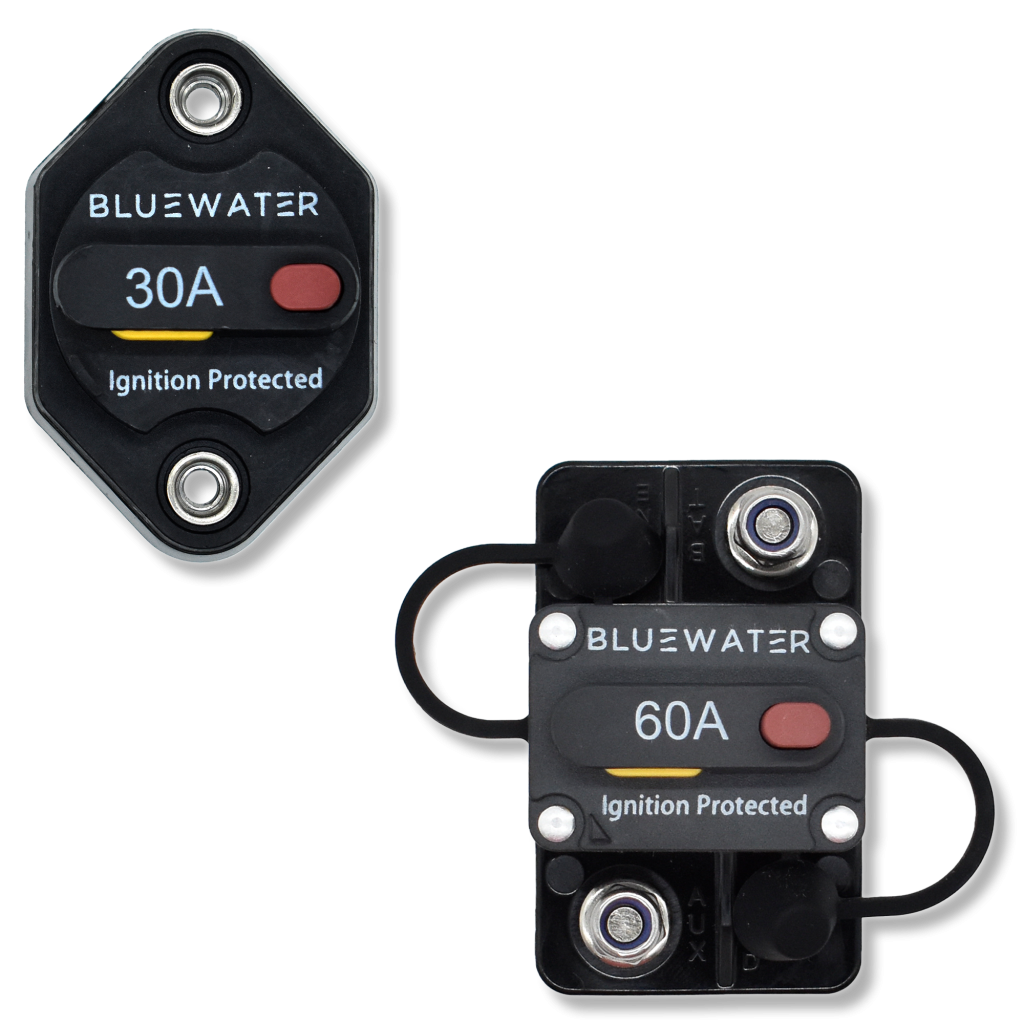

Mid-Range
surface & panel mount circuit Breakers
Panel Mount Part No: 78000-9600-xxx
Surface Mount Part No: 78000-9900-xxx
*xxx indicates amp rating
Looking for a reliable way to protect your DC circuits? Our mid-range surface and panel mount circuit breakersdeliver dependable performance for boats, RVs, and mobile applications. Designed for moderate-load systems up to 60 amps, these breakers are a trusted choice for trolling motors, auxiliary circuits, and other 12V–32V setups.
Key Features
Amperage Range: Available from 10A to 60A for versatile circuit protection
DC System Compatibility: Works with 12V or 32V DC systems
Construction: Rugged thermoplastic housing with nickel-plated copper components for corrosion resistance
Interrupting Capacity: Up to 2,500A at 14V, 30V, and 48V DC for reliable short-circuit protection
Mounting Options: Suitable for both surface mount and panel mount installations
Why Choose This Breaker?
Protects trolling motors, lighting circuits, and auxiliary loads
Compact design fits neatly into DC panels or surface mount locations
Marine-grade durability ensures long service life in harsh environments
Easy installation with two #10 studs, compatible with standard #10 ring terminals
Specifications/Additional Info
Specifications
- Max Voltage: 32V DC
- Max Current: 10-60A
- Material: Thermoplastic/Nickel-Plated Copper
- Max Interrupting Capacity:
- 30-150A;3KA at 14V DC
- 30-150A;3KA at 48V DC
- 30-150A;3KA at 30V DC
- 160-250A;3KA at 14V DC
- 160-300A;3KA at 48V DC
Installation
Use #10 style ring terminals to connect
Spec Sheet
Circuit Breakers Brochure
Related Options
What Is a Panel Mount Circuit Breaker?
A panel mount circuit breaker is a protective device designed to safeguard your boat or RV’s electrical system. It automatically disconnects power during overloads or short circuits, preventing damage to wiring, electronics, and batteries. Unlike fuses, these breakers can be reset without replacement.
Benefits of Panel & Surface Mount Breakers
Protects trolling motors, lighting, and auxiliary circuits
Resettable design — no need to carry spare fuses
Durable marine-grade construction for harsh environments
Available in mid-range (10A–60A) and high amp (70A–250A) models
Simple installation for both surface mount and panel mount applications
Panel Mount vs. Surface Mount Circuit Breakers
Panel Mount Breaker
Installs flush in a breaker panel for a clean look
Ideal for compact or multi-circuit systems
Often used in mid-range applications (10A–60A)
Surface Mount Breaker
Mounted externally on bulkheads or near batteries
Handles higher amperage loads (70A–250A)
Great for trolling motors, windlasses, or inverters
👉 Check out our High Amp Surface Mount Breakers for heavy-duty protection.
What Is a Panel Mount Circuit Breaker?
Do I need a circuit breaker on my boat?
Yes. Circuit breakers protect wiring and equipment from overheating or damage during overloads or short circuits.
What’s the difference between a fuse and a breaker?
Fuses need to be replaced when blown, while breakers can simply be reset. This makes breakers more convenient for marine applications.
Which size breaker do I need?
Choose the amperage rating based on the load of your circuit. For trolling motors and auxiliary circuits, a 10A–60A panel mount breaker is common. For windlasses, inverters, or larger loads, a 70A–250A surface mount breaker is recommended.
Can I install a breaker myself?
Yes, most boat owners can handle breaker installation with basic tools. However, for complex systems or high-amp circuits, professional installation is best.
Are your breakers waterproof?
Yes. Our breakers are marine-rated and built to resist corrosion, water, and vibration in harsh boating conditions.
What Is a Panel Mount Circuit Breaker?
A panel mount circuit breaker is a protective device designed to safeguard your boat or RV’s electrical system. It automatically disconnects power during overloads or short circuits, preventing damage to wiring, electronics, and batteries. Unlike fuses, these breakers can be reset without replacement.
Benefits of Panel & Surface Mount Breakers
Protects trolling motors, lighting, and auxiliary circuits
Resettable design — no need to carry spare fuses
Durable marine-grade construction for harsh environments
Available in mid-range (10A–60A) and high amp (70A–250A) models
Simple installation for both surface mount and panel mount applications
Panel Mount vs. Surface Mount Circuit Breakers
Panel Mount Breaker
Installs flush in a breaker panel for a clean look
Ideal for compact or multi-circuit systems
Often used in mid-range applications (10A–60A)
Surface Mount Breaker
Mounted externally on bulkheads or near batteries
Handles higher amperage loads (70A–250A)
Great for trolling motors, windlasses, or inverters
👉 Check out our High Amp Surface Mount Breakers for heavy-duty protection.
What Is a Panel Mount Circuit Breaker?
Do I need a circuit breaker on my boat?
Yes. Circuit breakers protect wiring and equipment from overheating or damage during overloads or short circuits.
What’s the difference between a fuse and a breaker?
Fuses need to be replaced when blown, while breakers can simply be reset. This makes breakers more convenient for marine applications.
Which size breaker do I need?
Choose the amperage rating based on the load of your circuit. For trolling motors and auxiliary circuits, a 10A–60A panel mount breaker is common. For windlasses, inverters, or larger loads, a 70A–250A surface mount breaker is recommended.
Can I install a breaker myself?
Yes, most boat owners can handle breaker installation with basic tools. However, for complex systems or high-amp circuits, professional installation is best.
Are your breakers waterproof?
Yes. Our breakers are marine-rated and built to resist corrosion, water, and vibration in harsh boating conditions.
