Mid-Range
surface & panel mount circuit Breakers
Panel Mount Part No: 78000-9600-xxx
Surface Mount Part No: 78000-9900-xxx
*xxx indicates amp rating
Product Overview
Mid range surface and panel mount circuit breakers provide reliable protection for moderate load DC electrical systems. Designed for applications up to 60 amps, these breakers are commonly used to protect trolling motors, auxiliary circuits, and onboard accessories in marine, RV, and mobile power systems operating from 12V to 32V DC.
Available in both surface mount and panel mount configurations, these breakers offer installation flexibility while delivering dependable overload and short circuit protection in demanding environments.
Compatibility and Construction
Built with a rugged thermoplastic housing and nickel plated copper components, these circuit breakers are engineered to resist corrosion, vibration, and environmental exposure. The internal design supports a high interrupting capacity, helping safeguard connected equipment during fault conditions while maintaining long term electrical reliability.
Installation Use Cases
These breakers are typically installed in DC distribution panels, near battery banks, or directly on bulkheads where reliable circuit protection is required. With simple stud connections and compact form factors, they are well suited for both new installations and system upgrades where space and accessibility matter.
Key Features
• Available amp ratings from 10A to 60A
• Compatible with 12V to 32V DC electrical systems
• Surface mount and panel mount installation options
• Rugged thermoplastic housing with corrosion resistant components
• Interrupting capacity up to 2500A for short circuit protection
Common Applications
• Trolling motors and marine auxiliary circuits
• Lighting, pumps, and accessory power distribution
• RV, overland, and mobile electrical systems
• DC circuit protection in control panels and enclosures
Specifications/Additional Info
Specifications
- Max Voltage: 32V DC
- Max Current: 10-60A
- Material: Thermoplastic/Nickel-Plated Copper
- Max Interrupting Capacity:
- 30-150A;3KA at 14V DC
- 30-150A;3KA at 48V DC
- 30-150A;3KA at 30V DC
- 160-250A;3KA at 14V DC
- 160-300A;3KA at 48V DC
Installation
Use #10 style ring terminals to connect
Spec Sheet
Circuit Breakers Brochure
What Is a Panel Mount Circuit Breaker?
A panel mount circuit breaker is a protective device designed to safeguard your boat or RV’s electrical system. It automatically disconnects power during overloads or short circuits, preventing damage to wiring, electronics, and batteries. Unlike fuses, these breakers can be reset without replacement.
Benefits of Panel & Surface Mount Circuit Breakers
Protects trolling motors, lighting, and auxiliary circuits
Resettable design — no need to carry spare fuses
Durable marine-grade construction for harsh environments
Available in mid-range (10A–60A) and high amp (70A–250A) models
Simple installation for both surface mount and panel mount applications
Panel Mount vs. Surface Mount Circuit Breakers

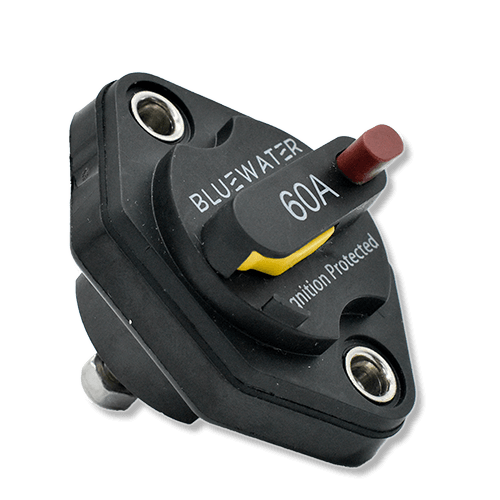

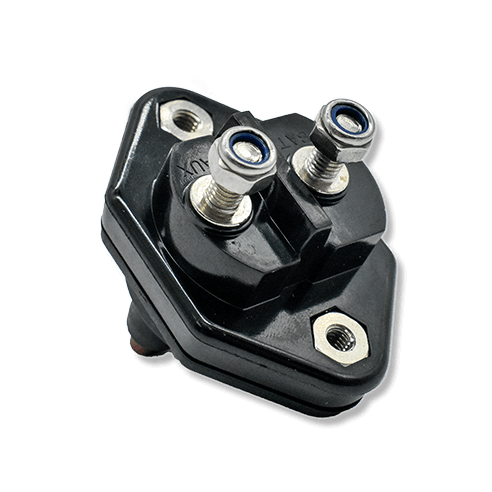

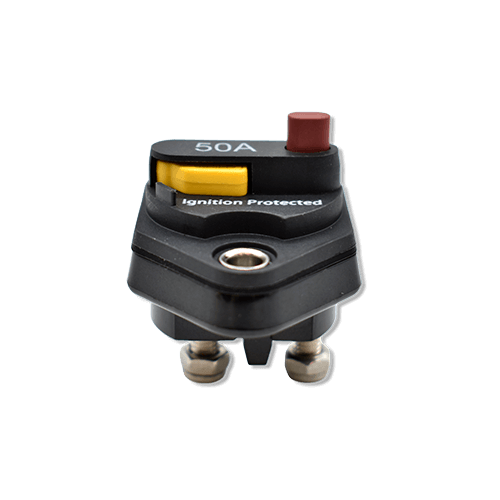

Panel Mount Circuit Breaker
Installs flush in a breaker panel for a clean look
Ideal for compact or multi-circuit systems
Often used in mid-range applications (10A–60A)

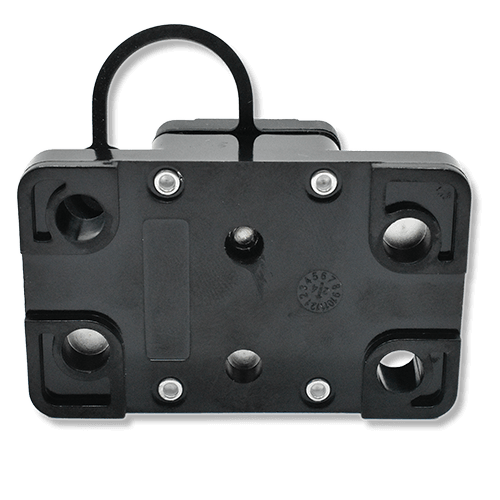

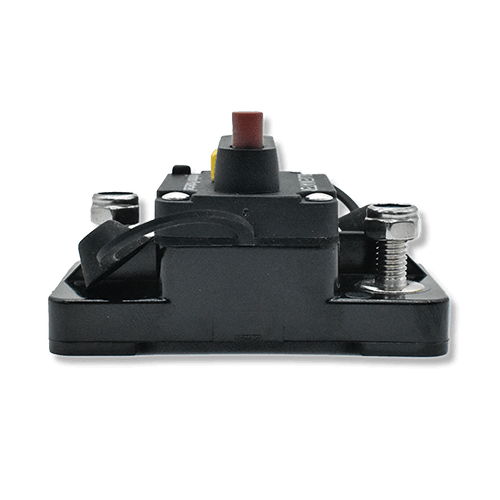

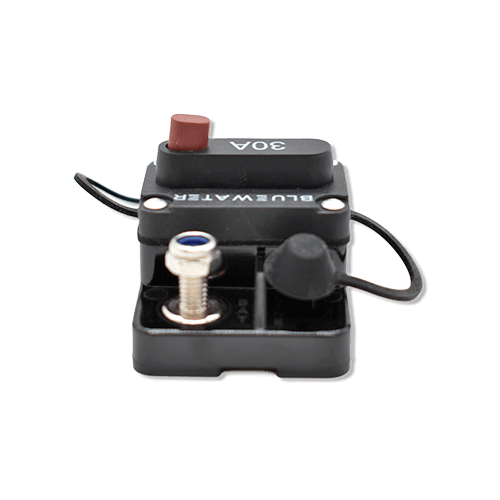

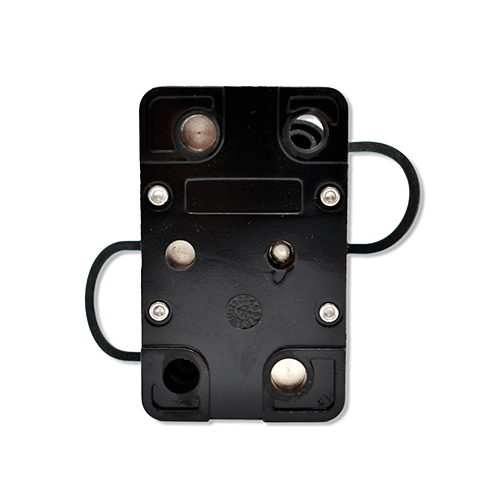

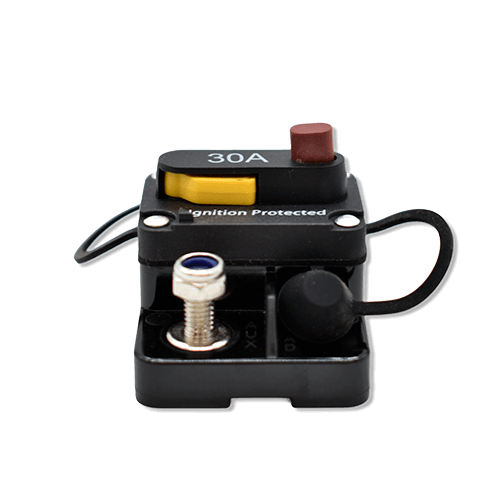

Surface Mount Circuit Breaker
Mounted externally on bulkheads or near batteries
Handles higher amperage loads (70A–250A)
Great for trolling motors, windlasses, or inverters
👉 Check out our High Amp Surface Mount Breakers for heavy-duty protection.
FAQs
Do I need a circuit breaker on my boat?
Yes. Circuit breakers protect wiring and equipment from overheating or damage during overloads or short circuits.
What’s the difference between a fuse and a breaker?
Fuses need to be replaced when blown, while breakers can simply be reset. This makes breakers more convenient for marine applications.
Which size breaker do I need?
Choose the amperage rating based on the load of your circuit. For trolling motors and auxiliary circuits, a 10A–60A panel mount breaker is common. For windlasses, inverters, or larger loads, a 70A–250A surface mount breaker is recommended.
What is the 80% rule on breakers?
You should only load a breaker up to 80% of its rated capacity to prevent overheating and ensure safety.
Are your breakers waterproof?
Yes. Our breakers are marine-rated and built to resist corrosion, water, and vibration in harsh boating conditions.
What Is a Panel Mount Circuit Breaker?
A panel mount circuit breaker is a protective device designed to safeguard your boat or RV’s electrical system. It automatically disconnects power during overloads or short circuits, preventing damage to wiring, electronics, and batteries. Unlike fuses, these breakers can be reset without replacement.
Benefits of Panel & Surface Mount Breakers
Protects trolling motors, lighting, and auxiliary circuits
Resettable design — no need to carry spare fuses
Durable marine-grade construction for harsh environments
Available in mid-range (10A–60A) and high amp (70A–250A) models
Simple installation for both surface mount and panel mount applications
Panel Mount vs. Surface Mount Circuit Breakers
Panel Mount Breaker
Installs flush in a breaker panel for a clean look
Ideal for compact or multi-circuit systems
Often used in mid-range applications (10A–60A)
Surface Mount Breaker
Mounted externally on bulkheads or near batteries
Handles higher amperage loads (70A–250A)
Great for trolling motors, windlasses, or inverters
👉 Check out our High Amp Surface Mount Breakers for heavy-duty protection.
What Is a Panel Mount Circuit Breaker?
Do I need a circuit breaker on my boat?
Yes. Circuit breakers protect wiring and equipment from overheating or damage during overloads or short circuits.
What’s the difference between a fuse and a breaker?
Fuses need to be replaced when blown, while breakers can simply be reset. This makes breakers more convenient for marine applications.
Which size breaker do I need?
Choose the amperage rating based on the load of your circuit. For trolling motors and auxiliary circuits, a 10A–60A panel mount breaker is common. For windlasses, inverters, or larger loads, a 70A–250A surface mount breaker is recommended.
Can I install a breaker myself?
Yes, most boat owners can handle breaker installation with basic tools. However, for complex systems or high-amp circuits, professional installation is best.
Are your breakers waterproof?
Yes. Our breakers are marine-rated and built to resist corrosion, water, and vibration in harsh boating conditions.
