Surface & Panel Mount Circuit Breakers

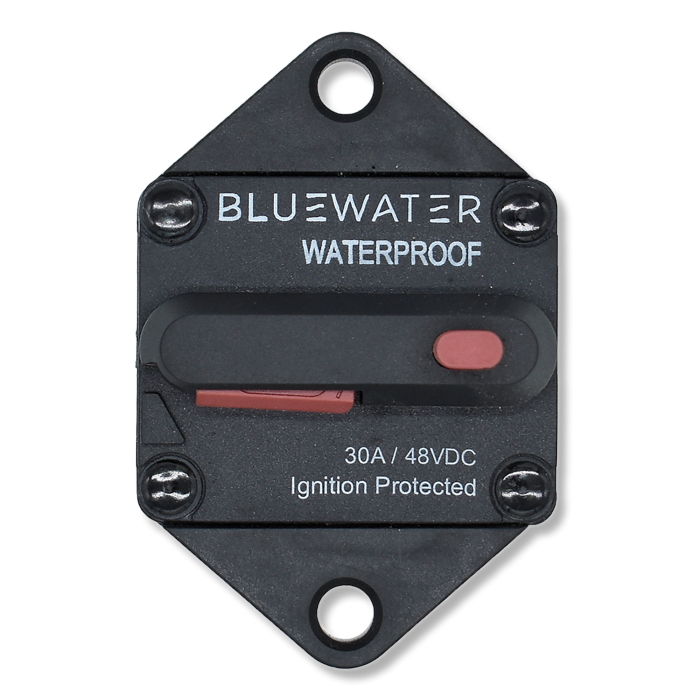

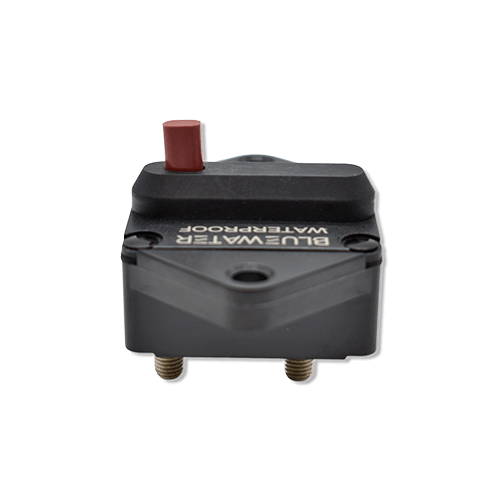

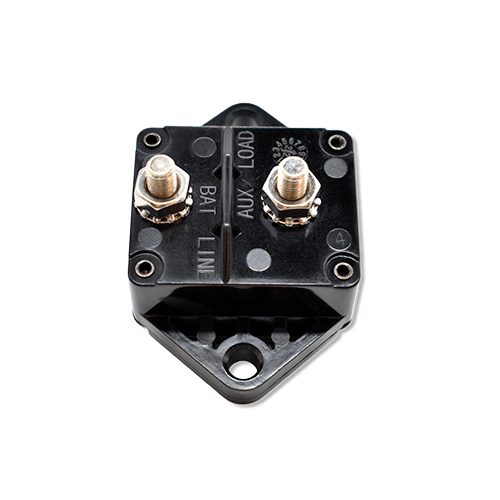

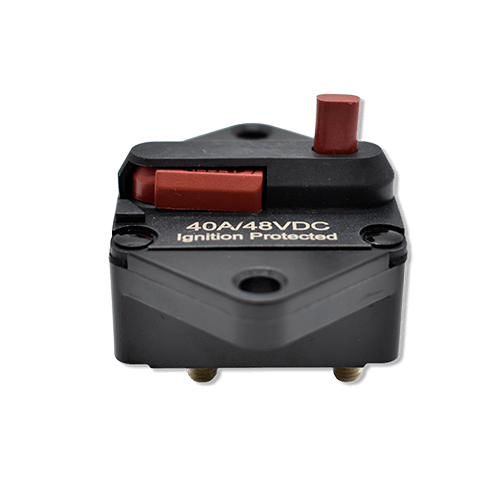

Panel Mount Part No: 77000-9600-xxx

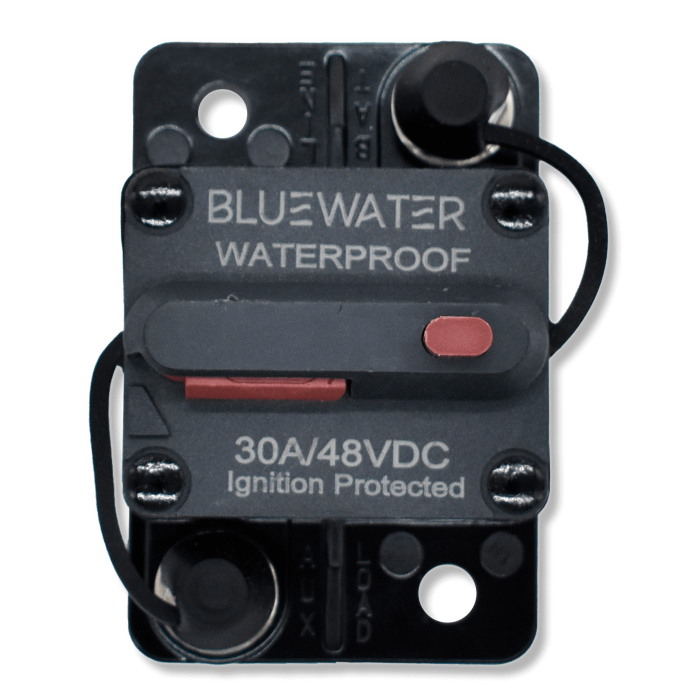

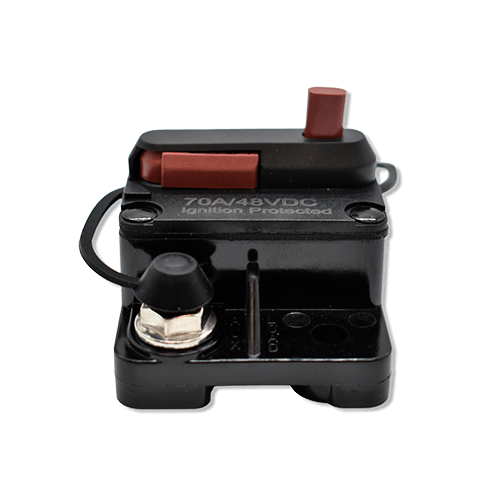

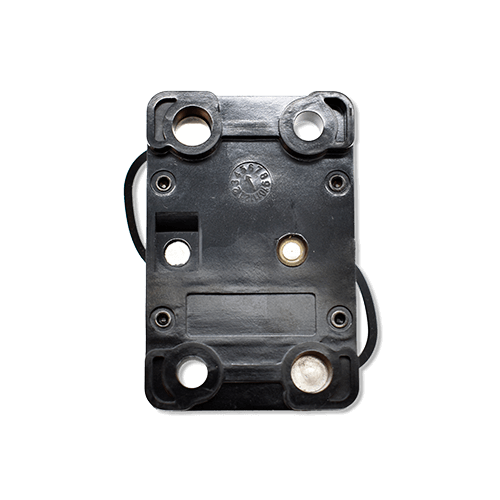

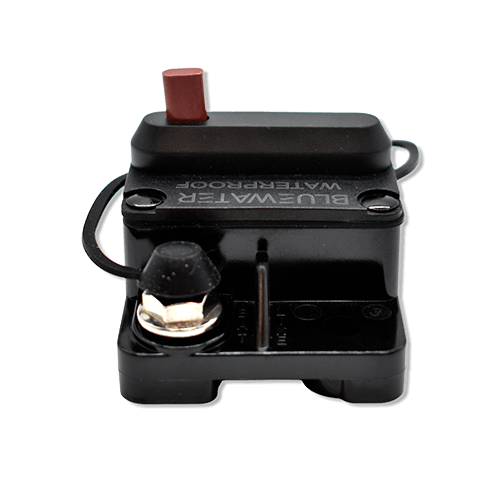

Surface Mount Part No: 77000-9900-xxx
*xxx indicates amp rating
These high-amp surface & panel mount circuit breakers are available in Auto-Reset, Manual-Reset, and Switchable/Manual configurations, offering reliable protection for auxiliary and accessory circuits in trucks, buses, RVs, and marine applications.
It supports systems up to 32V or 48V DC and handles current ratings from 30 to 250 amps. With a robust thermoplastic housing and nickel-plated copper components, it’s built to withstand demanding environments.
These marine-grade surface & panel mount circuit breakers features a maximum interrupting capacity of 3,000 amps across various voltages, including 14V, 30V, and 48V DC, with performance scaling across the 30–300A range.
For installation, the unit is designed to accept standard 1/4″ lugs, ensuring a secure and straightforward connection.
Specifications/Additional Info
Available as:
- Auto-Reset
- Manual-Reset
- Switchable/Manual (Pictured)
Specifications
- Max Voltage: 32V DC; 48V DC
- Max Current: 30-250A
- Material: Thermoplastic/Nickel-Plated Copper
- Max Interrupting Capacity:
- 30-150A;3KA at 14V DC
- 30-150A;3KA at 48V DC
- 30-150A;3KA at 30V DC
- 160-250A;3KA at 14V DC
- 160-300A;3KA at 48V DC

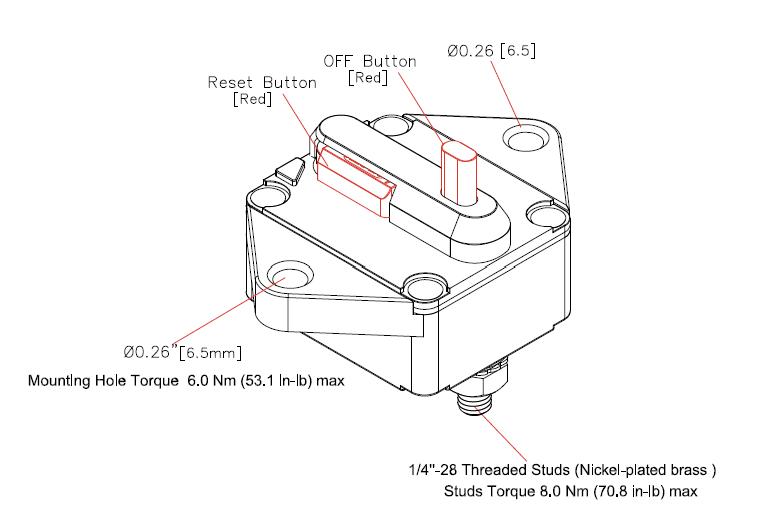

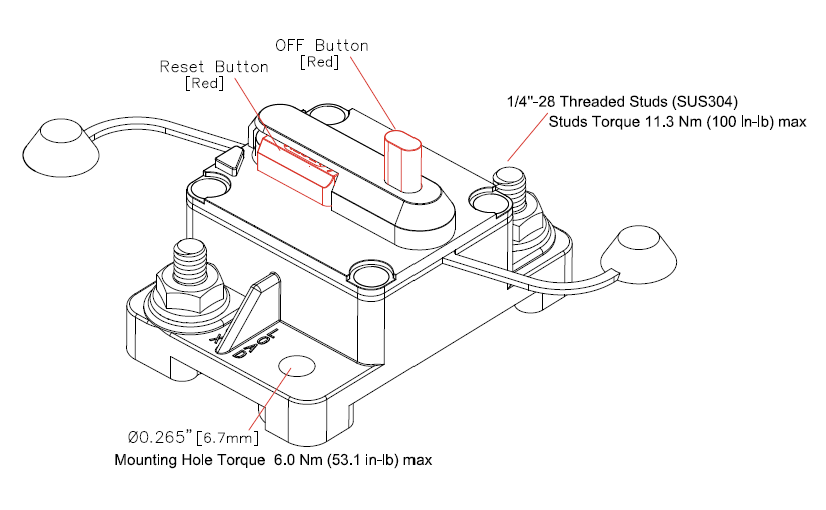

Installation
Use 1/4″ lugs to connect your cable to the circuit breaker
Spec Sheet
Circuit Breakers Brochure
