heavy duty bus bar

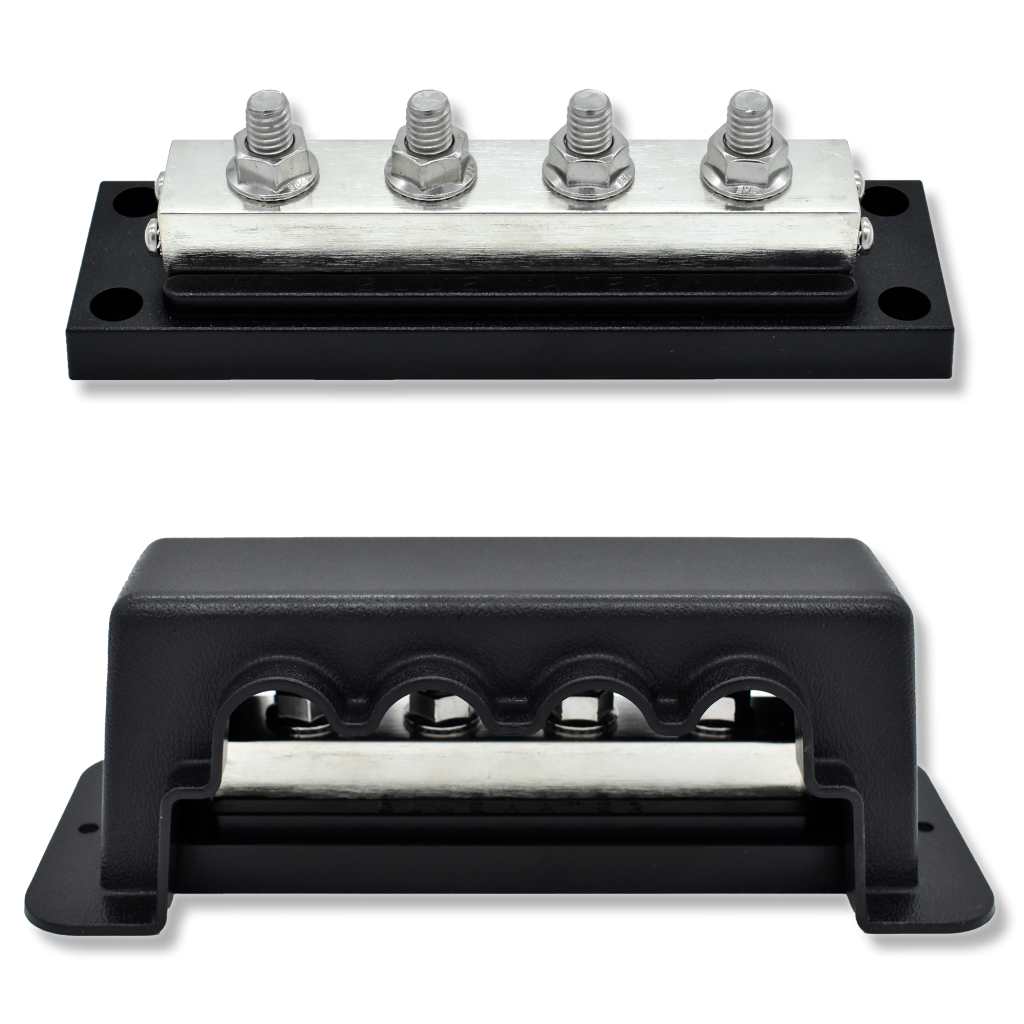

Heavy Duty Bus bar
4 Stud

Part No: 312315-B-004

Part No: 312315-B-104 (Black Cover)

Part No: 312315-B-205 (Red Cover)

Built for rugged, high-load environments, this 4-gang heavy-duty stud bus bar handles large cable connections with ease. Ideal for battery systems or inverter setups where durability is critical.

The heavy duty bus bar features corrosion-resistant hardware and a robust design to withstand vibration, moisture, and salt spray.

Its solid construction ensures reliable power transfer and minimal voltage drop, making it perfect for demanding marine, RV, and industrial applications where safety and performance matter.

Specifications

  • Current: Rated up to 600 AMP.
  • Maximum Voltage: 300V/48V DC
  • Stud Size: 3/8-16  Stainless Steel
  • Mounting Holes: 0.21
  • Mounting Screw Size: #10, 1/4″
  • Distance Between Mounting Holes: 6.26″
  • Material: Reinforced Polycarbonate/Tin-Plated Copper

Installation

Mount with (4) #10, 1/4″ Screws
