Dual Stud Busbar

Dual Stud Busbar
3/8”

Part No: 312311-B-020

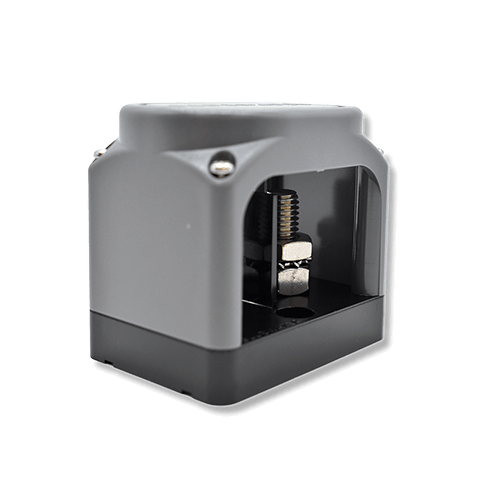

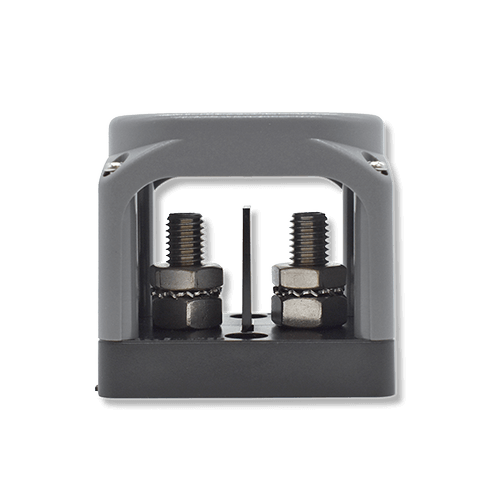

Part No: 312311-B-021 (Cover)

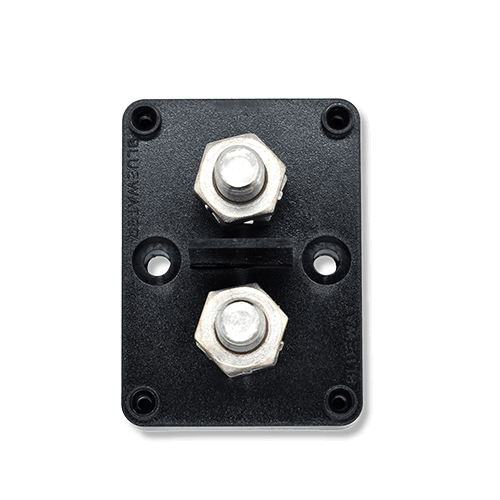

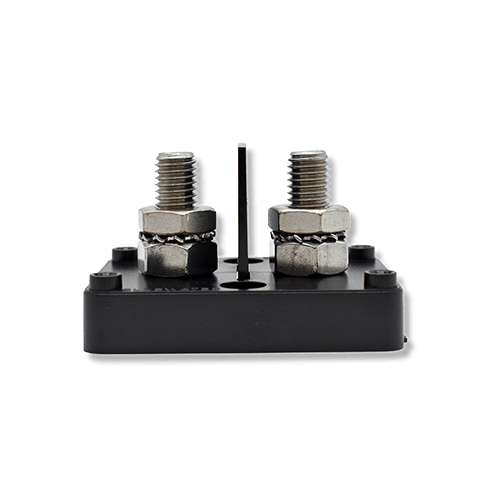

This heavy-duty dual stud busbar features two 3/8” studs for high-current connections. It supports large cable lugs and is ideal for linking batteries, power inverters, or distribution panels.

The corrosion-resistant construction ensures long-lasting performance in harsh marine or off-road environments. This busbar offers a reliable solution for compact yet powerful electrical layouts where durability and efficiency are critical.

Its compact footprint makes it easy to mount in tight spaces, while the high-conductivity design ensures minimal voltage drop across demanding circuits. Built for serious power distribution, it’s a staple for any professional-grade setup.

Specifications

  • Max Voltage: 48V DC
  • Max Amp: 200A
  • Stud Size: 3/8″-16
  • Mounting Holes: 0.25
  • Mounting Screw Size: #10, 1/4″
  • Distance Between Mounting Holes: 1.425″

Installation

Mount with (2) #10, 1/4″ Screws
