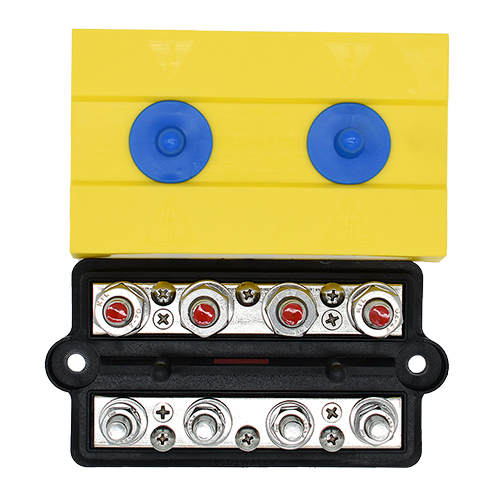

Dual 4 Stud Busbar

This dual stud busbar has two 4 stud sides allowing for multiple connections. The 3/8″ side is marked red for the positive side, and the non-marked side has 5/16″ studs. Allowing you to connect both your positive and negative systems.

► 4 Studs Terminal Studs on each side.
► Current Rated up to 250 Amp.
► Busbar Part#: 313856-B-023


Maximum Voltage 300V/48VDC Terminal Type 1/4″ Studs
Max Rating 250 Amps Dimensions View Dimensional Drawings
Terminal Studs 4 Material Black Polycarbonate, Clear PolycarbonateTin-Plated Copper


Mount with (2) 1/4″ screws.
