DT Connectors
6 Position

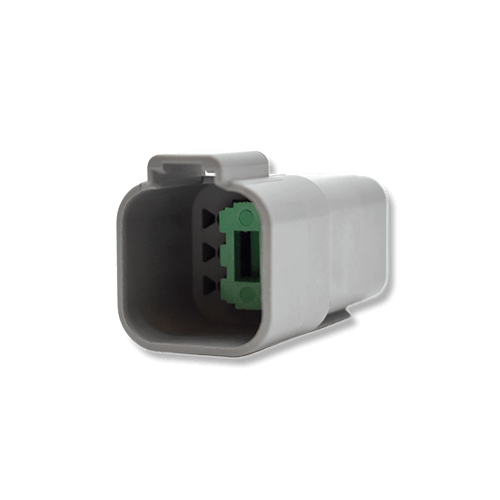

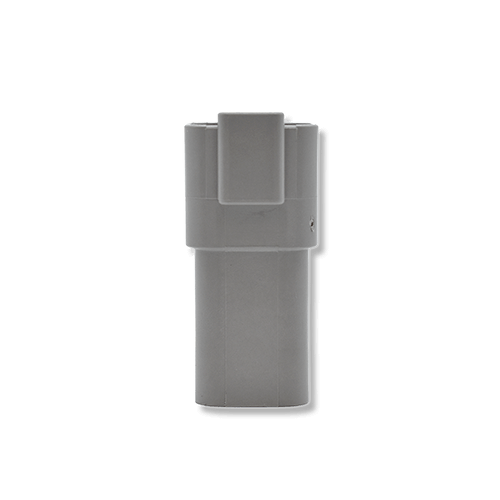

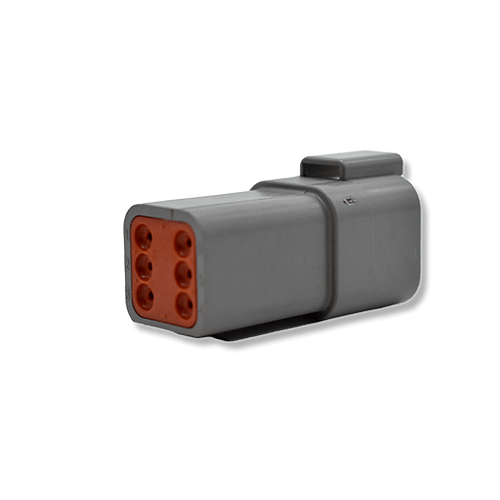

Part No: DT04-6P (Male)

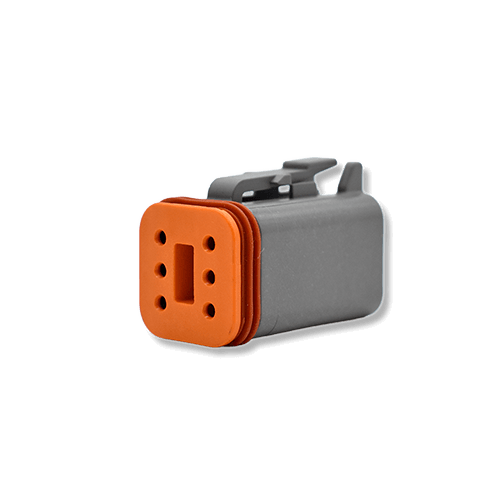

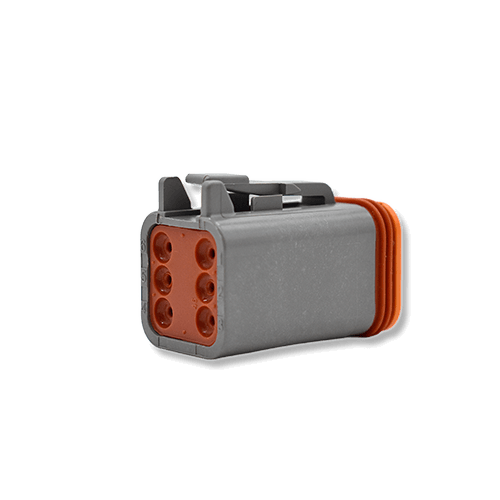

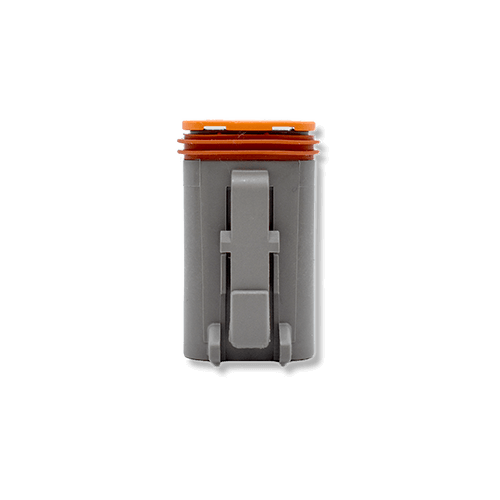

Part No: DT06-6S (Female)

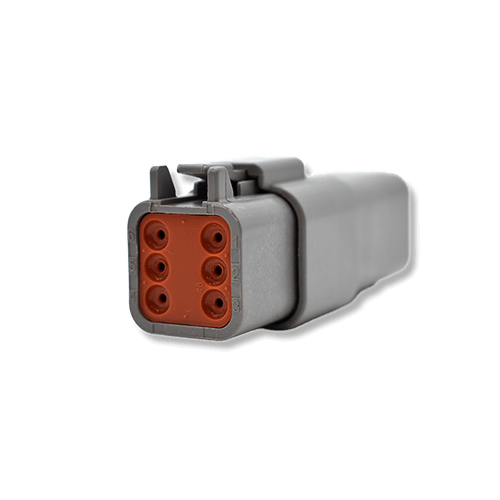

The DTO4-6P and DTO6-6S connectors are part of the DT series and form a complete 6-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.
Designed for reliability in harsh environments, the DT series can deliver up to 13 amps continuously. This 6 pin dt connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications. Its rugged housing, corrosion-resistant contacts, and reliable locking mechanism ensure long-lasting performance, even in extreme conditions, making it perfect for professional installations and high-demand electrical systems.
Specifications/Additional Info
- Comes in bags of 100 with a separate bag of wedge locks included.
- Male uses Solid 14AWG Machined Terminal or Stamped DT Crimp.
- Female uses DT Machined 14-16AWG Machined Terminal or DT Crimp Stamped and Formed Terminal.
Spec Sheet
Deutsch Connectors Brochure
