DT Connectors
12 Position

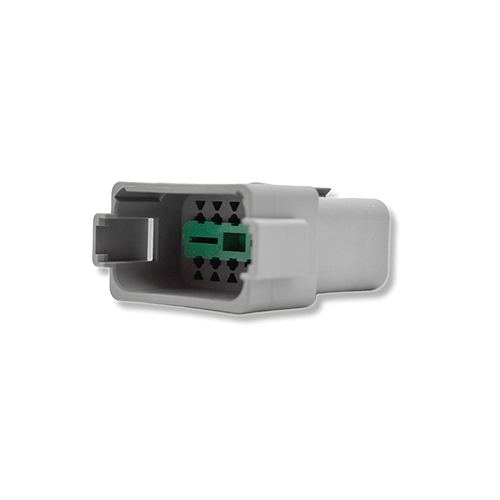

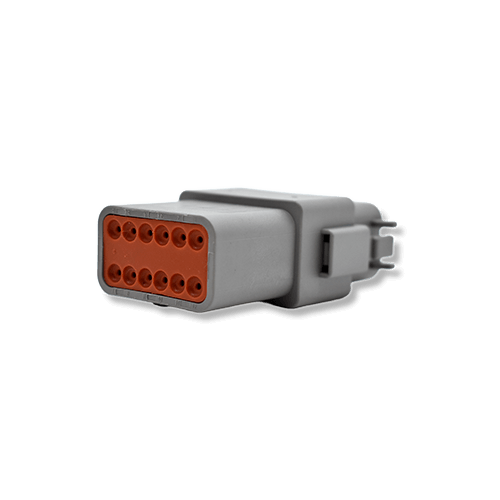

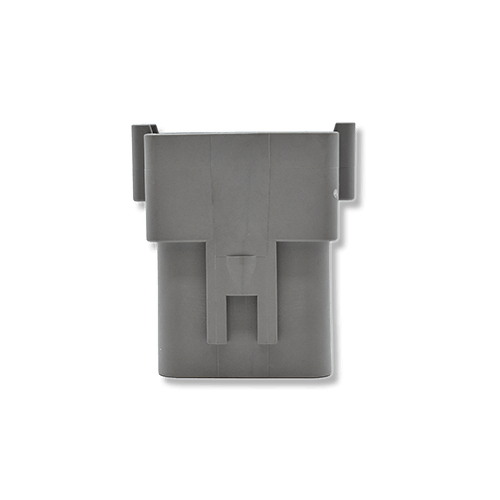

Part No: DT04-12P (Male)

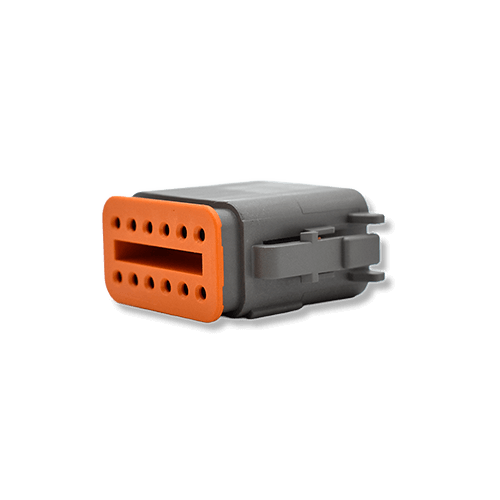

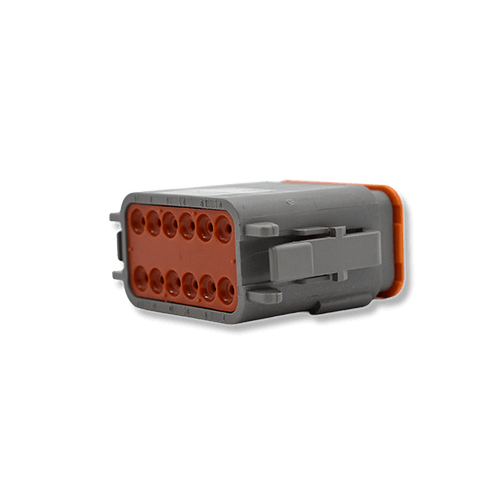

Part No: DT06-12S (Female)
The DTO4-12P and DTO6-12S connectors are part of the DT series and form a complete 12-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.
Designed for reliability in harsh environments, the DT series can deliver up to 13 amps continuously. This 12 pin dt connector provides secure, weather-resistant connections ideal for marine, automotive, and industrial wiring applications.
Its rugged housing, corrosion-resistant contacts, and reliable locking mechanism ensure long-lasting performance, making the 12 pin dt connector perfect for high-demand electrical systems and professional installations in harsh environments.
Specifications/Additional Info
- Comes in bags of 100 with a separate bag of wedge locks included.
- Male uses Solid 14AWG Machined Terminal or Stamped DT Crimp.
- Female uses DT Machined 14-16AWG Machined Terminal or DT Crimp Stamped and Formed Terminal.
Spec Sheet
Deutsch Connectors Brochure
