Common Stud Busbar
4 Gang

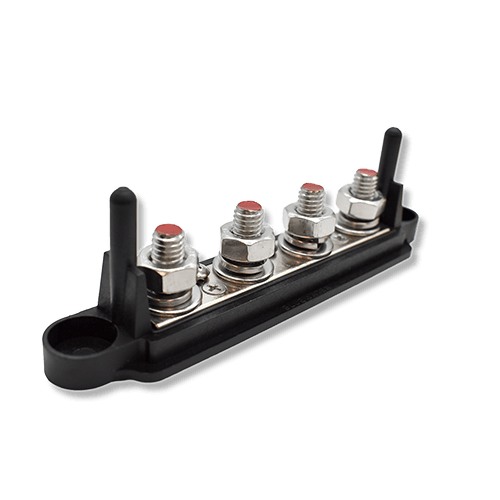

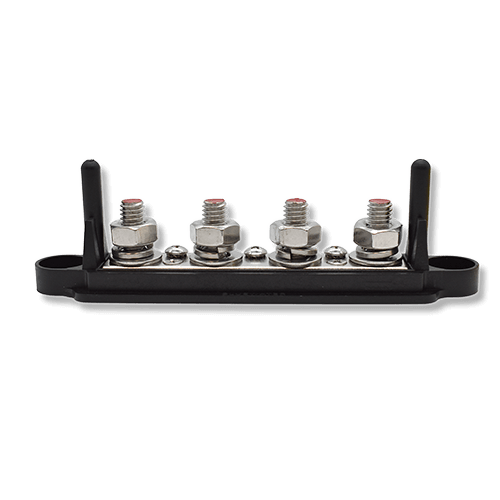

Positive Terminal Busbar
Part No: 313738-B-023 (with cover)
This 4-gang positive terminal block features a common stud for shared power input. This Positive Terminal Busbar is perfect for distributing power from a single source to multiple outputs, with clear labeling for safe and simple wiring.
Built for marine, off-road, or industrial use, the Positive Terminal Busbar provides clean, organized, and corrosion-resistant power routing in compact spaces. Ideal for boats, RVs, and auxiliary systems that demand reliable current distribution.
Specifications/Additional Info
Specifications
- Current: Rated up to 250 AMP.
- Stud Size: 3/8″
- Mounting Holes: 0.25
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 5.7″
Installation
Mount with (2) #10, 1/4″ Screws
Spec Sheet
Busbars Brochure
