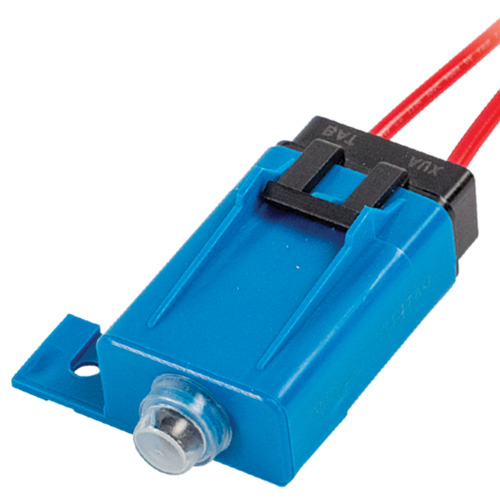

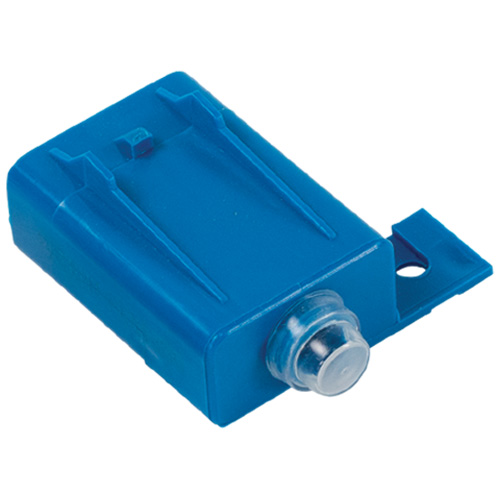

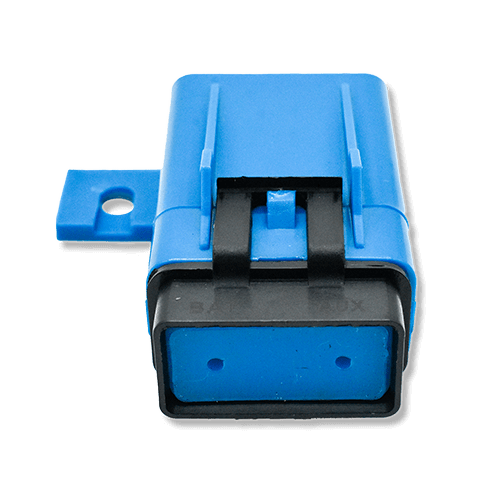

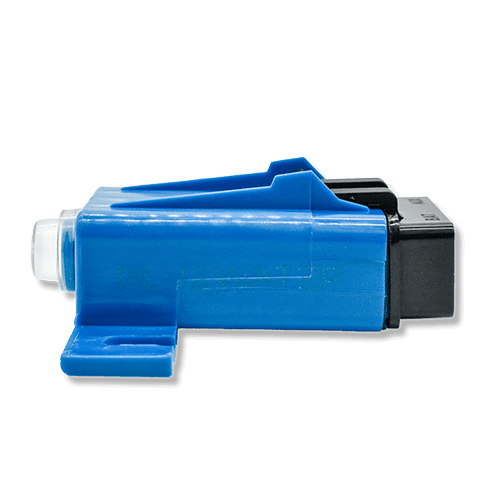

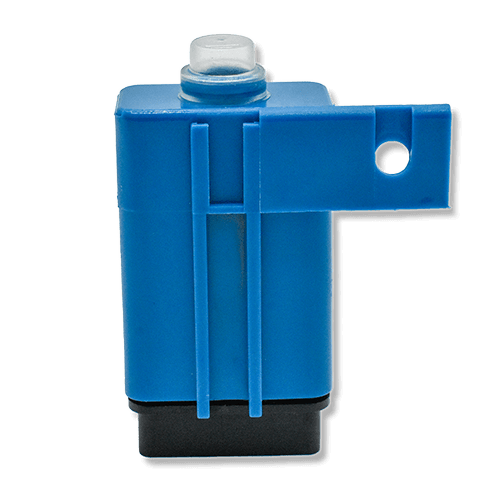

In-Line Circuit Breaker Holder
Part No: 1200500-0092
Looking for a reliable way to protect and mount your breaker? This inline circuit breaker holder is built for rugged environments where water, dirt, and debris can threaten system performance.
Key Features
Waterproof Protection – Gasket-sealed housing keeps out moisture and contaminants, ensuring consistent electrical performance in marine, trailer, SUV, and ATV applications.
Durable Construction – Heavy-duty nylon housing with a tight-locking cover and clear silicone gasket forms a secure waterproof seal.
Easy Service Access – Reset your breaker without removing the cap, saving time during maintenance.
Flexible Mounting – Includes both a mounting plate for front-panel installs and a locking ring for rear access installation.
Reliable Performance – Rated for 30V DC and 30A output, ideal for harsh, high-vibration environments.
Why Use a Circuit Breaker Holder?
A breaker holder provides a secure, sealed mount for circuit breakers, protecting them from water, dirt, and mechanical stress. Whether you call it a circuit breaker holder or simply a breaker holder, it ensures long-term reliability for your electrical system.
*If you’re working on a setup that also uses fuses for circuit protection, you may want to check out our In-Line Fuse Holder. It offers the same rugged, sealed performance but is designed specifically for fuse-based systems.
Specifications/Additional Info
Specifications
- Input Voltage: 30V DC
- Output Current: 30A
- Material: Nylon/Silicone Rubber
Installation
Includes both mounting plate for front panel installation and locking ring for rear access installation.
Spec Sheet
Circuit Breakers Brochure
