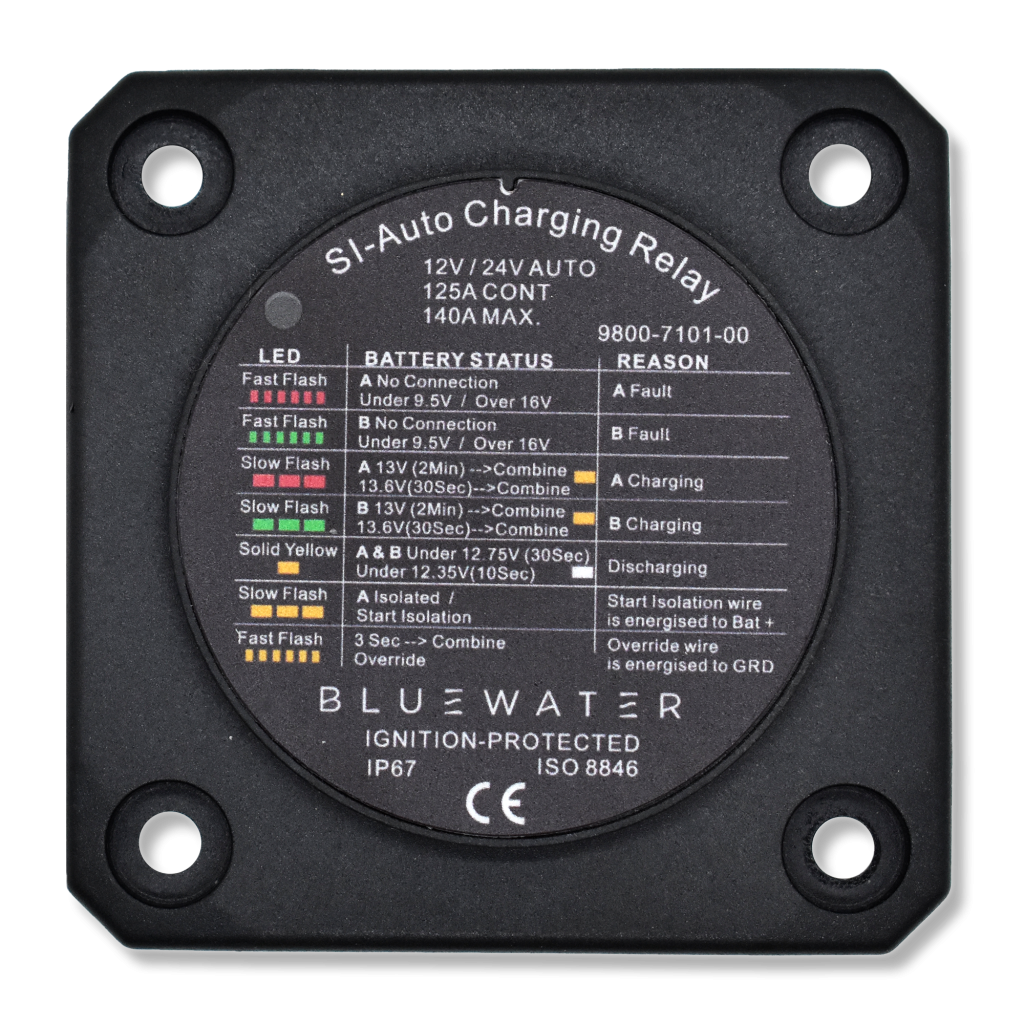

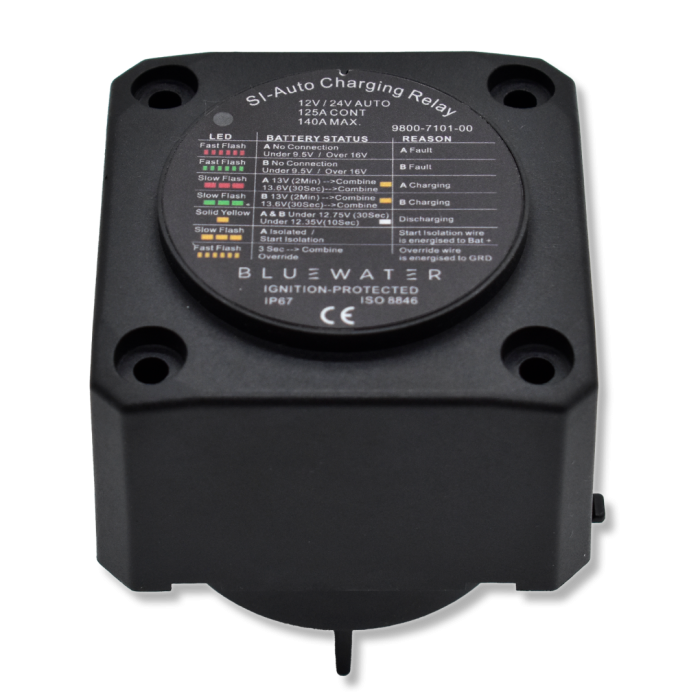

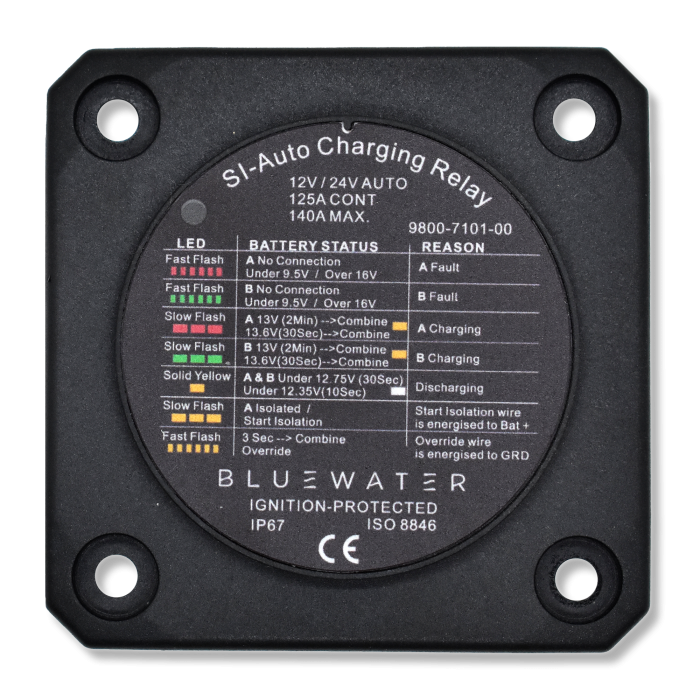

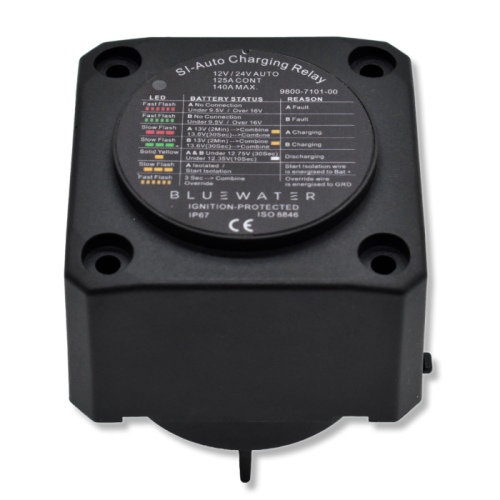

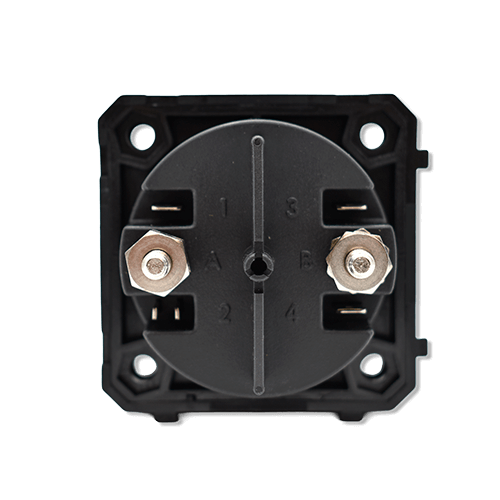

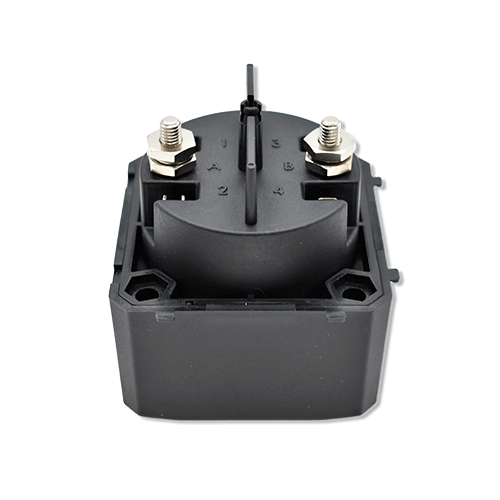

Auto Charging Relay
Part No: 9800-7101-00
The automatic charging relay (ACR) automatically manages battery charging to ensure maximum efficiency and protect your batteries.
Key Features & Benefits:
Automatic battery management – connects batteries during charging and isolates them when voltage drops
Start Isolation (SI) – protects sensitive electronics during engine cranking by temporarily disconnecting house loads (indicated by a slow-flashing yellow LED)
High-output support – compatible with alternators up to 120 A
Dual-color LEDs – provide real-time battery status: Fault, Charging, Discharging, Combine, SI, and Override modes
Under Voltage Lockout – prevents the relay from closing when battery voltage is too low (9.5 V for 12 V systems, 19 V for 24 V systems)
Durable design – IP67 waterproof, ignition protected, safe for marine and RV applications
Applications:
Boats – dual battery systems (starter + house)
Sailboats – navigation and lighting batteries
Fishing boats – trolling motor and accessory battery protection
Specifications/Additional Info
Continuous Rating: 120 Amps
Intermittent Rating: 140 Amps
Max Voltage: 48VDC
Cable Size: 4/0 AWG
Spec Sheet
Battery Switches Brochure
Related Options
What Is an Automatic Charging Relay?
An ACR is a voltage-sensing smart switch that manages multiple batteries on your boat. It automatically links batteries when charging voltage is present and separates them when it drops.
Benefits:
Protects your starter battery from being drained
Improves charging efficiency compared to diode isolators (~0.6 V loss)
Eliminates the need for manual switching
Works seamlessly with alternators, chargers, and solar panels
ACR vs. Battery Isolator
Automatic Charging Relay (ACR):
Voltage-sensitive operation
Low internal resistance → minimal power loss
Automatic operation with modern charging sources
Battery Isolator:
Uses diodes to separate batteries
Higher voltage drop → reduced charging efficiency
Often requires high-output alternators
Verdict: ACRs are typically the preferred solution for modern marine dual-battery systems.
Frequently Asked Questions (FAQ)
Do I need an ACR on my boat?
Yes. An ACR keeps your starter battery safe and your house battery fully charged.
Can I install it myself?
Many models are DIY-friendly, but professional installation is recommended for complex systems.
Difference between ACR and VSR?
They are the same device; VSR is another term for an automatic charging relay.
Will it work with solar panels?
Yes. The ACR will connect batteries when the solar controller raises voltage.
- What Is an Automatic Charging Relay?
An ACR is a voltage-sensing smart switch that manages multiple batteries on your boat. It automatically links batteries when charging voltage is present and separates them when it drops.
Benefits:
Protects your starter battery from being drained
Improves charging efficiency compared to diode isolators (~0.6 V loss)
Eliminates the need for manual switching
Works seamlessly with alternators, chargers, and solar panels
- ACR vs. Battery Isolator
Automatic Charging Relay (ACR):
Voltage-sensitive operation
Low internal resistance → minimal power loss
Automatic operation with modern charging sources
Battery Isolator:
Uses diodes to separate batteries
Higher voltage drop → reduced charging efficiency
Often requires high-output alternators
Verdict: ACRs are typically the preferred solution for modern marine dual-battery systems.
- Frequently Asked Questions (FAQ)
Do I need an ACR on my boat?
Yes. An ACR keeps your starter battery safe and your house battery fully charged.
Can I install it myself?
Many models are DIY-friendly, but professional installation is recommended for complex systems.
Difference between ACR and VSR?
They are the same device; VSR is another term for an automatic charging relay.
Will it work with solar panels?
Yes. The ACR will connect batteries when the solar controller raises voltage.
