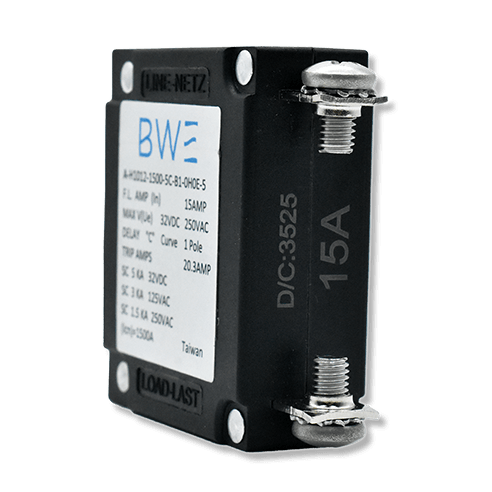

A Series Circuit breaker
UL# TBD
The A Series Circuit Breaker is a trusted choice in marine electrical distribution panels, providing resettable protection and manual switching for both DC and AC circuits. Designed to fit standard rectangular panel cutouts and available in a range of amp ratings, this breaker combines dependable trip performance with easy panel access and visible status indication.
Key Features:
Wide Amp Selection: Available in ratings from 2.5A to 50A to suit various loads.
Marine Panel Standard: Commonly used in boat distribution panels and compatible with typical cutouts.
Dual Use: Suitable for both DC and AC service.
Manual Reset: Can be switched off and reset without replacing fuses.

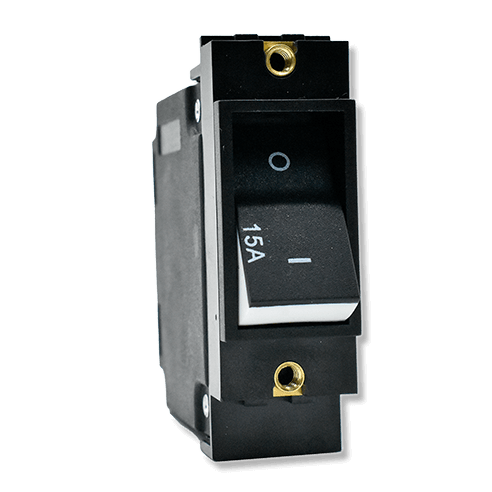

Flush Actuator (Flat Rocker): Sits flush when ON and provides clear visual OFF indication.
Need Higher Amp Protection?
If your application requires more than 50 amps, consider stepping up to a heavier-duty breaker. Our C Series Circuit Breaker line is designed for higher current loads and demanding marine power distribution systems.
View our C Series circuit breaker options.
Specifications/Additional Info
- Over-Load Percentage 100% :Hold with No Trip
- Over-Load Percentage 150% :Trip Within 1.3s-1.38s
- Over-Load Percentage 200% :Trip within 1s-1.8s
- Over-Load Percentage 400% :Trip within 0.15s-0.02s
Specifications
- Voltage Rating: 240VAC ; 80VDC
- Current Rating: 2.5A – 50A
Installation
Mounting Holes: 0.16″
Distance Between Mounting Holes: 1.66”
Spec Sheet
Circuit Breakers Brochure
