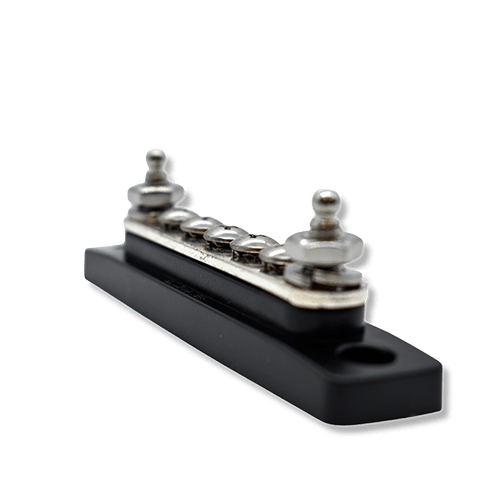

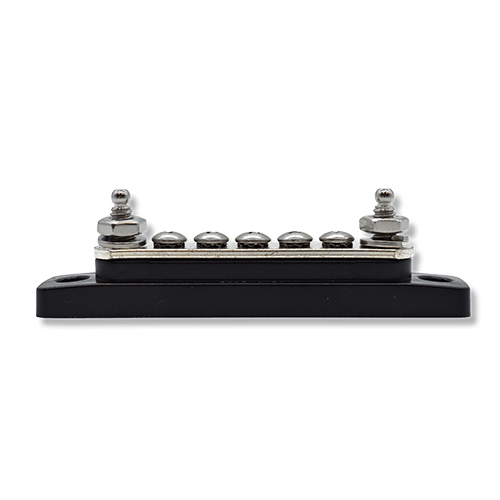

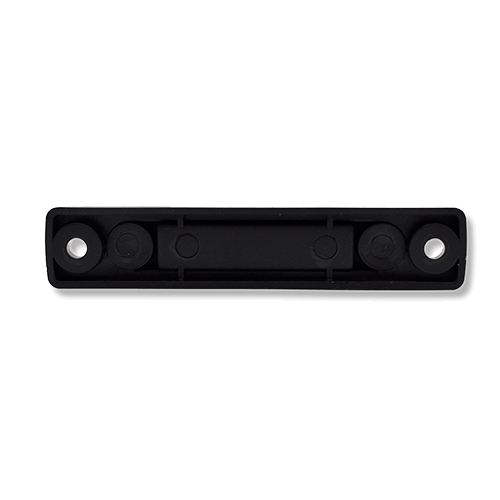

5 Terminal Busbar
100 Amp
Part No: 312314-B-020
Part No: 312314-B-021 (Cover)
This compact 5-terminal busbar supports up to 100 amps, providing clean and reliable power distribution for smaller systems. It’s ideal for organizing circuits in tight marine or automotive panels where space is limited.
The compact marine busbar design ensures easy installation without sacrificing durability or performance.
Whether you’re upgrading an existing system or building new electrical panels, this compact marine busbar offers a streamlined solution that keeps wiring neat and efficient.
Specifications/Additional Info
- Common 5 Gang Terminal Blocks.
- Current: Rated up to 150 AMP.
- Stud Size: 1/4″ Stainless Steel
- Mounting Holes: 0.21
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 5.25″
Installation
Mount with (2) #10, 1/4″ Screws
Spec Sheet
Busbars Brochure
