20 terminal busbar

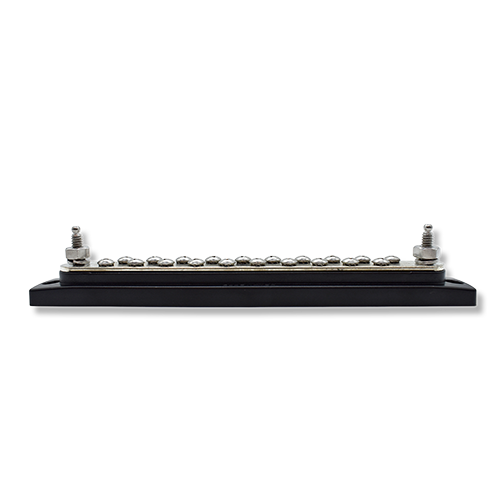

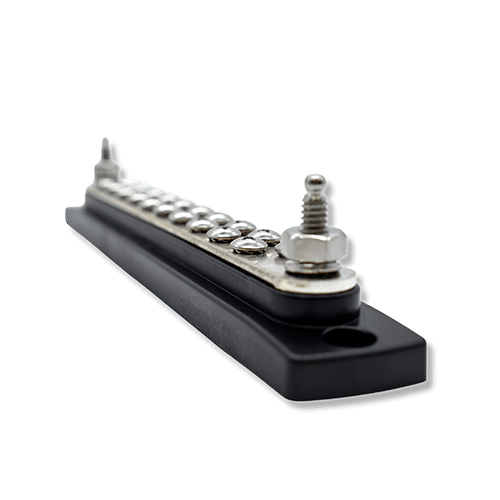

20 Terminal Busbar
150 Amp

Part No: 312302-B-020

Part No: 312302-B-021 (Cover)

Designed for larger wiring systems, this 20-terminal busbar handles up to 150 amps. It allows you to centralize multiple connections and simplifies complex circuit layouts in marine or industrial systems.

This 20 terminal busbar is perfect for applications where space and organization matter, offering a clean and efficient way to manage numerous circuits.

Built from corrosion-resistant materials, this busbar provides long-lasting performance even in harsh environments, making it a dependable choice for demanding power distribution needs.

  • Common 20 Gang Terminal Blocks.
  • Current: Rated up to 150 AMP.
  • Stud Size: 1/4″  Stainless Steel
  • Mounting Holes: 0.21
  • Mounting Screw Size: #10, 1/4″
  • Distance Between Mounting Holes: 8.25″

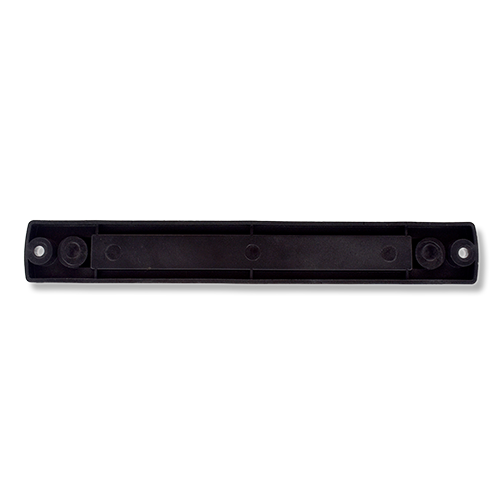

Installation

Mount with (2) #10, 1/4″ Screws
