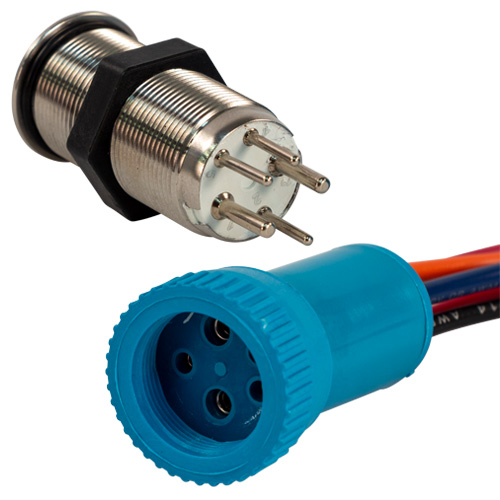

19mm LED Electronic Push Button Switch
9057 Series
MSRP $49.99
These 316L stainless steel buttons can transform any dash by adding a touch of modern flair and is available in both a Standard On/Off contact or a Momentary On/Off contact version.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let you know that function is on without question.

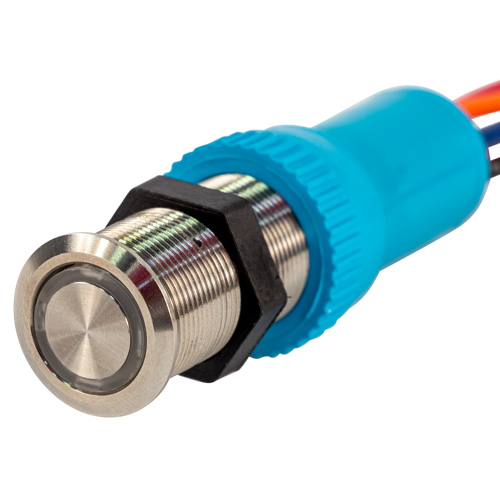

These switches are available in three LED designs: 1) comprised of a flat metal actuator surrounded by a translucent PC material LED illuminated ring, 2) a fully translucent PC material LED illuminated face, or 3) a laser engraved logo.
Specifications
| Switch Rating | 15A/12 – 24VDC | Dimensions | View Dimensional Drawings |
| Switch Contacts | 1 NO, 1 NC | 2 NO, 2 NC | Material | Nickel plated Brass/Stainless Steel |
| Mechanical Life | 50,000 cycles | LED color | Blue/Green/Red |
| Electrical Life | 10,000 cycles |
| Switch Rating | 15A/12 – 24VDC |
| Switch Contacts | 1 NO, 1 NC | 2 NO, 2 NC |
| Mechanical Life | 50,000 cycles |
| Electrical Life | 10,000 cycles |
| Dimensions | View Dimensional Drawings |
| Material | Nickel plated Brass/Stainless Steel |
| LED color | Blue/Green/Red |
Installation
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
