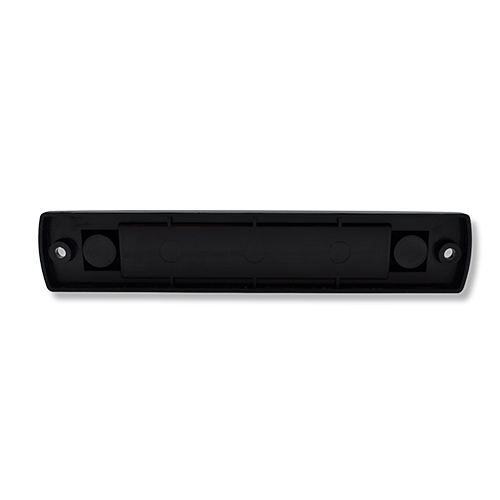

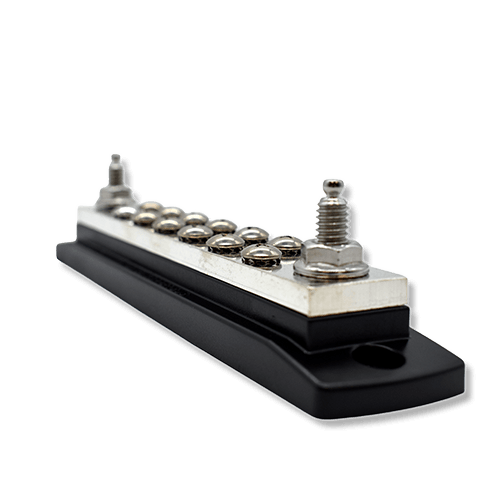

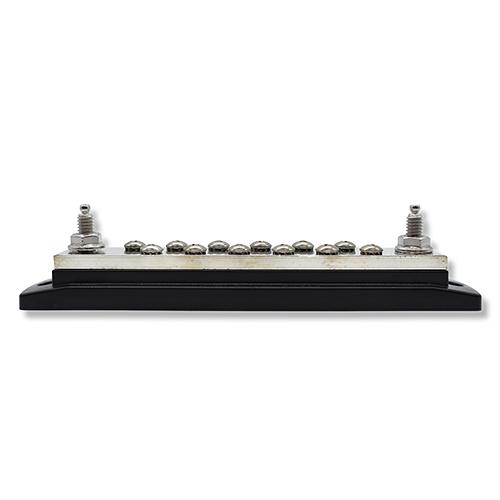

12 Terminal Busbar
250 Amp
Part No: 312105-B-020
Part No: 312105-B-021 (Cover)
Built for high-capacity applications, this 12 terminal busbar delivers up to 250 amps of current handling. It’s ideal for distributing power to heavy loads or high-demand circuits in boats, RVs, and off-grid systems.
The rugged construction ensures lasting performance in harsh environments, including exposure to moisture, vibration, and salt spray.
Designed for clean and organized installations, this 250 amp busbar simplifies complex wiring setups and supports both positive and negative distribution needs with minimal maintenance. This 250 amp busbar is a dependable choice for demanding power systems requiring maximum reliability.
Specifications/Additional Info
- Common 12 Gang Terminal Blocks.
- Current: Rated up to 150 AMP.
- Stud Size: 1/4″ Stainless Steel
- Mounting Holes: 0.21
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 8.50″
Installation
Mount with (2) #10, 1/4″ Screws
Spec Sheet
Busbars Brochure
