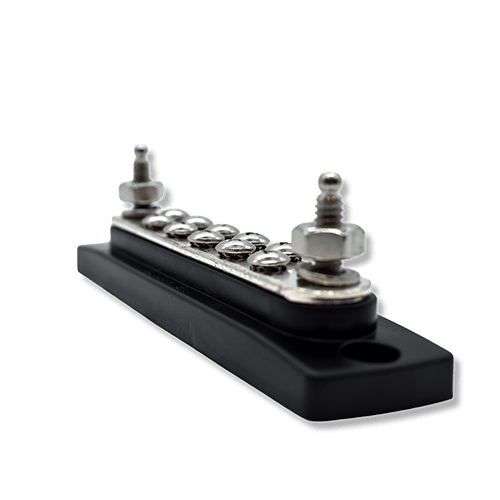

10 Terminal Busbar
150 Amp
Part No: 312301-B-020
Part No: 312301-B-021 (Cover)
With a 150 amp capacity, this 10 terminal electrical busbar offers efficient power distribution in mid-sized applications. It provides a durable, marine-grade solution for clean circuit organization and grounding.
Designed to withstand harsh marine and industrial environments, this 10 terminal electrical busbar features corrosion-resistant materials and heavy-duty terminals to ensure long-lasting performance.
Its compact layout makes installation simple while maintaining reliable electrical connections, making it ideal for boats, off-road vehicles, and other demanding systems.
Specifications/Additional Info
- Common 10 Gang Terminal Blocks.
- Current: Rated up to 150 AMP.
- Stud Size: 1/4″ Stainless Steel
- Mounting Holes: 0.21
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 5.25″
Installation
Mount with (2) #10, 1/4″ Screws
Spec Sheet
Busbars Brochure
